• Model NO.：Customized
• IP Rating：IP54
• Install Style：Surface Mounted
• Certification：CCC, CE, CQC, REACH, RoHS, SAA, SGS,ISO14001,OHSAS18001
• Voltage：220-240V
• Beam Angle：45°
• Power：18,24,36,40,72W,80W
• Light Efficiency：90-100 Lm,W
• Base Material：Metal
• Item Name：LED Panel Light
• Transport Package：Standard Export Packing
• Specification：300x300x12,300x600x12,300x1200x12,600x600x12,600x1
• Trademark：Wiskind
• Origin：Shandong Prov., China
• HS Code：9405409000

Basic Info.

Model NO. Customized IP Rating IP54 Install Style Surface Mounted Certification CCC, CE, CQC, REACH, RoHS, SAA, SGS/ISO14001/OHSAS18001 Voltage 220-240V Beam Angle 45° Power 18/24/36/40/72W/80W Light Efficiency 90-100 Lm/W Base Material Metal Item Name LED Panel Light Transport Package Standard Export Packing Specification 300x300x12/300x600x12/300x1200x12/600x600x12/600x1 Trademark Wiskind Origin Shandong Prov., China HS Code 9405409000

Product Description

Wiskind Low-energy LED Cleanroom Ceiling Light Panels For High-performance Clean Room

Remark: all products can be emergency, add -e after the model, which means the product has emergency function, such as yj103a-e, emergency time is 90 minutes or 180 minutes.




1,Integrated bevel design, fully integrated clean environment photo visual system.
2,It is made of aluminum with high thermal conductivity, and its surface is treated by anti-static spraying.
3,Imported chip LED light source, day blue light hazard and photobiological pollution.

Requirements for lighting
1. try to use the top suction Ming.
2. The lighting standard is generally 200-500 lux, and the auxiliary room, corridor and air lock room are generally 150-300 lux.
3. The uniformity value of illumination is greater than 0.7.
4. Illumination glare value is less than 22.
5. Emergency lighting, the quantity should be 20% of general lighting.

Lamps and lanterns requirements
1. clean room lighting lamps generally use efficient, anti - glare lamps.
2. The lighting fixtures in the clean room must be strobe free, noiseless and anti-interference when working.
3. The structure and appearance of lamps cannot affect the air flow mode in the clean room.
4, the lamp frame is smooth, not easy to dust, easy to clean, no special edges and corners, and cleanroom ceiling panel installation, beautiful and generous.
5, the surface of lamps and lanterns to resist corrosion, oxidation.

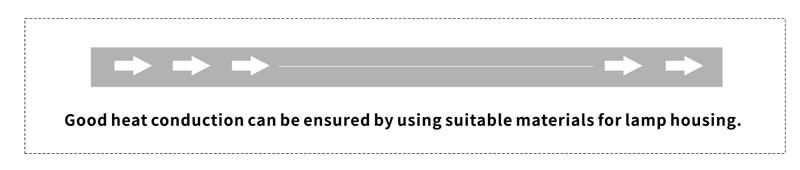

Good heat dissipation system
Lamps and lanterns should be kept in a bright state in a clean space for a long time. Good heat dissipation system is required to ensure the normal work of lamps and lanterns.

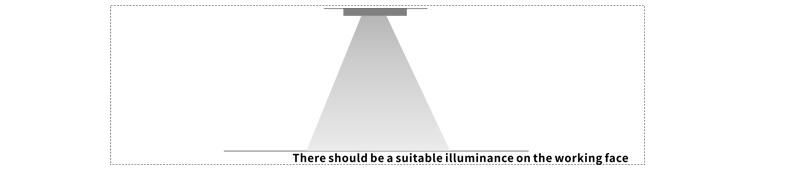

 Appropriate lighting effect
As a controlled environment, suitable lighting effect must be required to meet the requirements of clean environment.


Soft light
Work under lamplight for a long time, lamps and lanterns require anti-glare function, prevent visual fatigue and damage vision.






FAQ:

1.Are you a Factory/Manufacturer or Trading Company?
We are a manufacturer with 40 years experience of production and have a modern standard plant of 1,000,000 m².

2.How about your lead time?
It will take 3-7 days for budget and design according to the drawings after receiving the deposit.  15-30 days if there are some special sizes.

3.Can you sell products to all over the world?
Yes, we have 4 subsidiaries, 13 offices and more than 100 technical superviors all over the world, providing timely and face-to-face service for customers.

4.How about your core competitiveness?
We have the first automatic production line in the world. Compared with the traditional manual production line, the production efficiency increased by 6-8 times, leading most competitors. That means lower cost and higher quality.

5.Do you have your own construction team?
No, but all of our cleanroom panels and connected parts are easy for disassemble and installation due to our excellent design. What's more, we provided the instruction and videos for installation and we can send our professional superviors to the site.

6.How many kinds products do you have?
At present, we have more than 30 different products, including clean room wall panel system, ceiling system, clean room door, clean room window and so on.

7.Can you provide samples? Is it free or extra?
Yes, we can provide samples for free, but we would appreciate it if freight to collect.

8.What is your terms of payment ?
30% T/T prepay, 70% T/T before delivery. We can discuss payment if we have more cooperation in the future.



Welcome to wiskind, we will be your trustworth partner!
