• Model NO.：SLD51B-12W
• Color Temperature：Ww,Nw,Cw
• Lamp Body Material：Aluminum Casting
• Source Number：Single Plug
• Installation：Recessed
• Warranty：5 Years
• Application：Engineering, Home Furnishing
• IP Rating：20
• Certification：CCC, CE, LVD, RoHS, SAA, UL
• Driver：Constant Current Isolated Driver
• Cut-out：75mm
• CRI：Ra>95
• Chip Type：COB
• Reflector：White, Black, Sliver, Gold
• Light Special：Deep-Hide Anti-Glare Design
• Lumen：130lm,W
• Transport Package：Carton
• Specification：85*76mm
• Trademark：HOSD
• Origin：Zhongshan, China
• HS Code：9405409000
• Production Capacity：100000PCS,Mounth
• Package size per unit product：9.00cm * 9.00cm * 9.00cm
• Gross weight per unit product：0.250kg

Basic Info.

Model NO. SLD51B-12W Color Temperature Ww/Nw/Cw Lamp Body Material Aluminum Casting Source Number Single Plug Installation Recessed Warranty 5 Years Application Engineering, Home Furnishing IP Rating 20 Certification CCC, CE, LVD, RoHS, SAA, UL Driver Constant Current Isolated Driver Cut-out 75mm CRI Ra>95 Chip Type COB Reflector White, Black, Sliver, Gold Light Special Deep-Hide Anti-Glare Design Lumen 130lm/W Transport Package Carton Specification 85*76mm Trademark HOSD Origin Zhongshan, China HS Code 9405409000 Production Capacity 100000PCS/Mounth

Packaging & Delivery

Package size per unit product 9.00cm * 9.00cm * 9.00cm Gross weight per unit product 0.250kg

Product Description

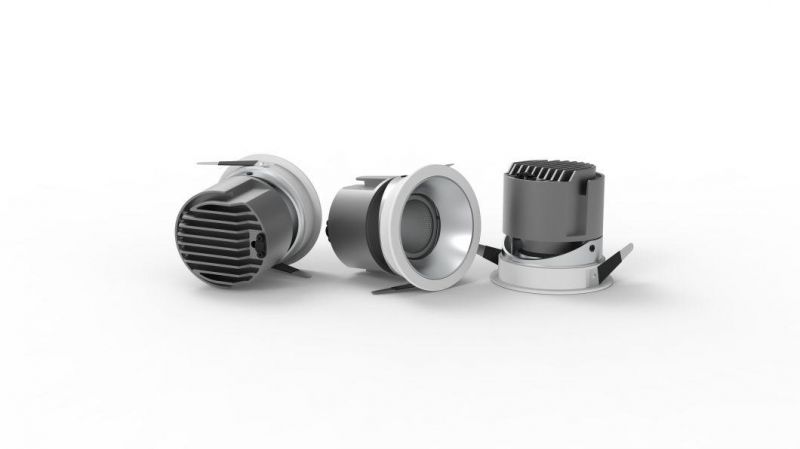

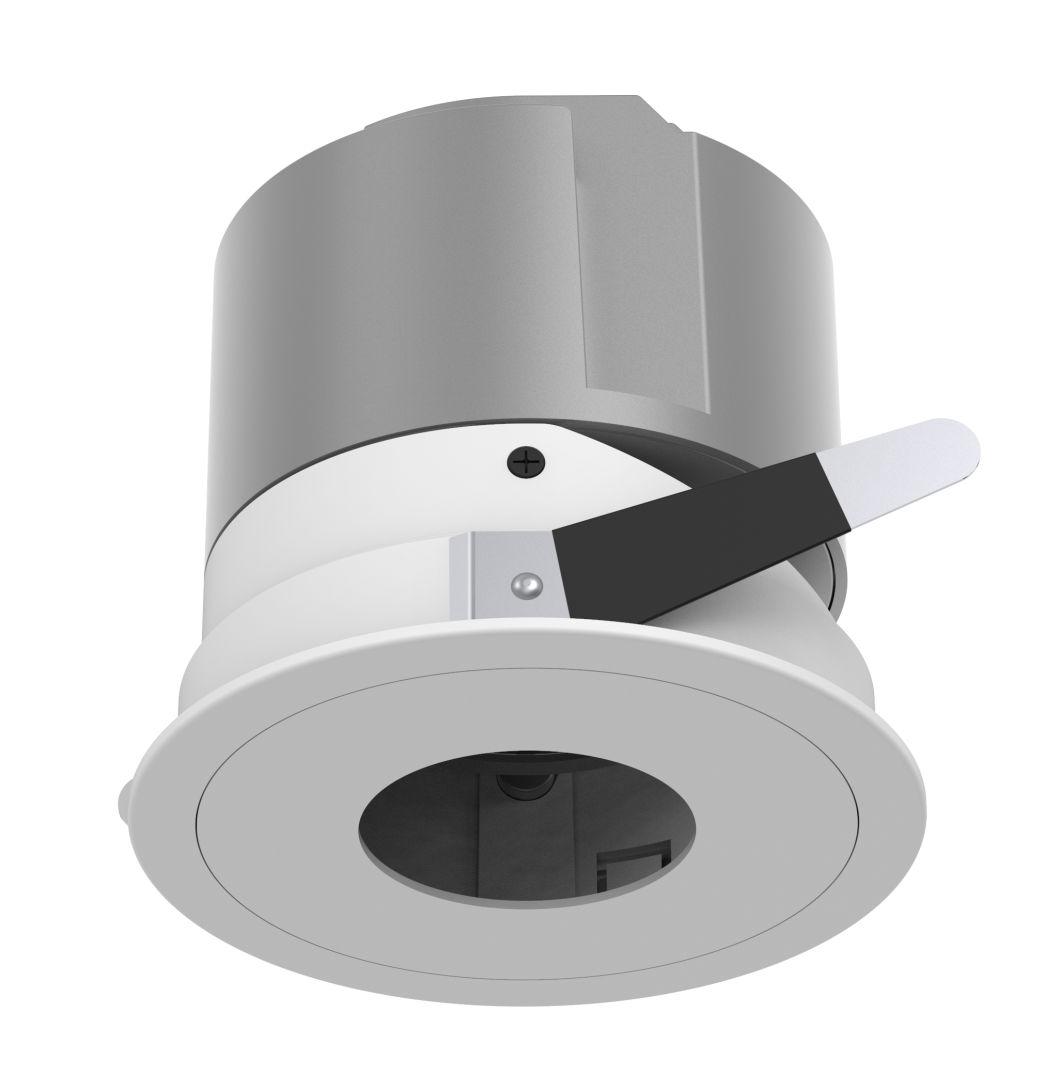

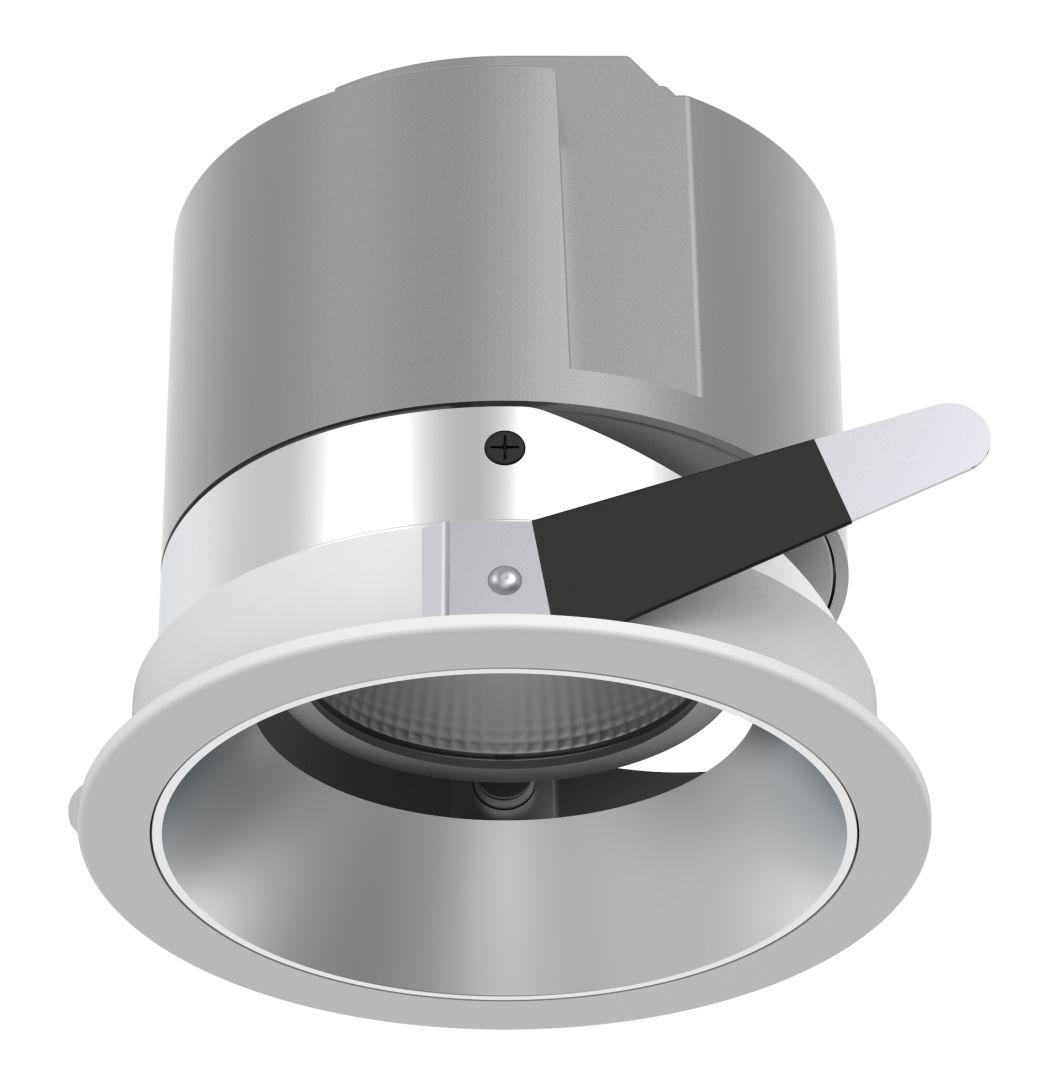

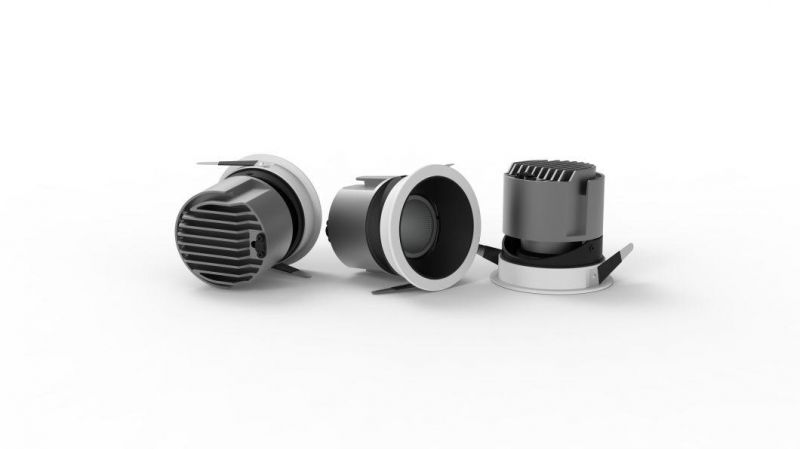

8W-12W anti-glare Ceiling Recessed adjustable COB LED wallwasher downlight spotlight for Hotel villas office showroom store shopping mall spot light


* Recessed fixed/adjustable/square/trimless led wallwasher spotlight

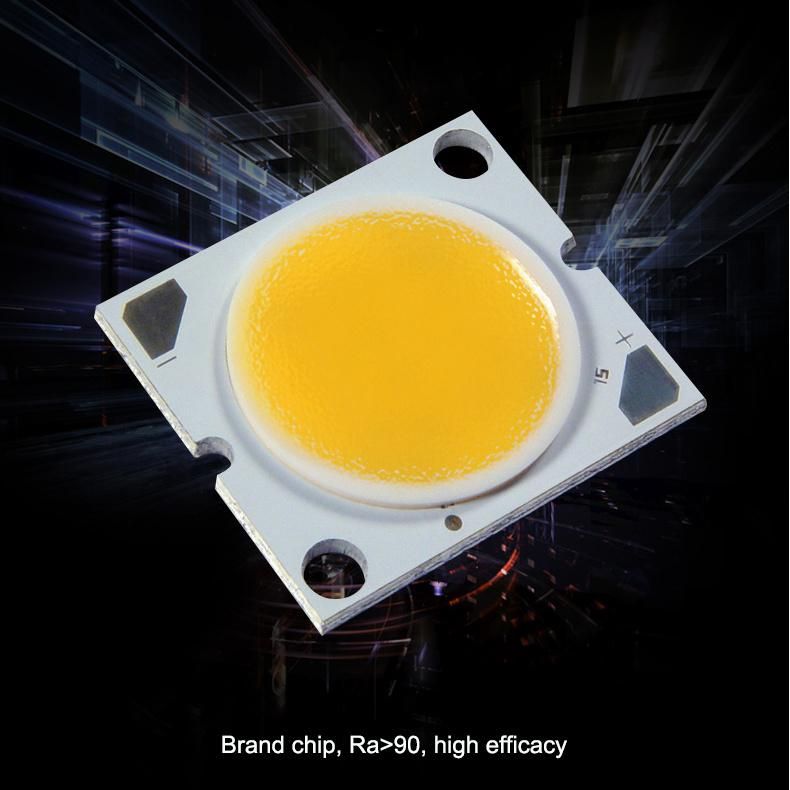

* Bridgelux/Osram/Cree led chip, CRI>92 and 130lm/W COB chip

* Reflector: white, mirror, silver, golden, gun/matt black, honeycomb

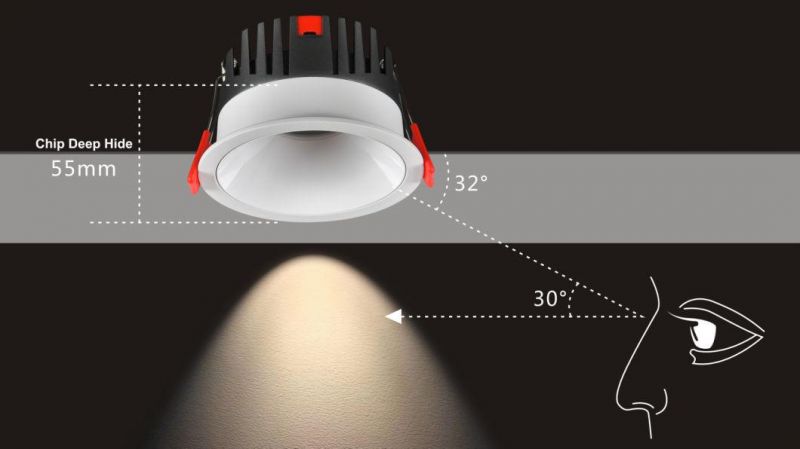

* Opitics lens no UV, deep-hidden anti-glare design UGR<16

* Constant current driver, Triac,0~10V or DALI dimmable option

* Instant start, no flickering, no humming, no electric wave

* Aluminum alloy housing, nice heat dissipation

* Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K

* Less than 3% light decay in 10000hrs testing, SDCM≤3

* Operating temperature: -25ºC~55ºC

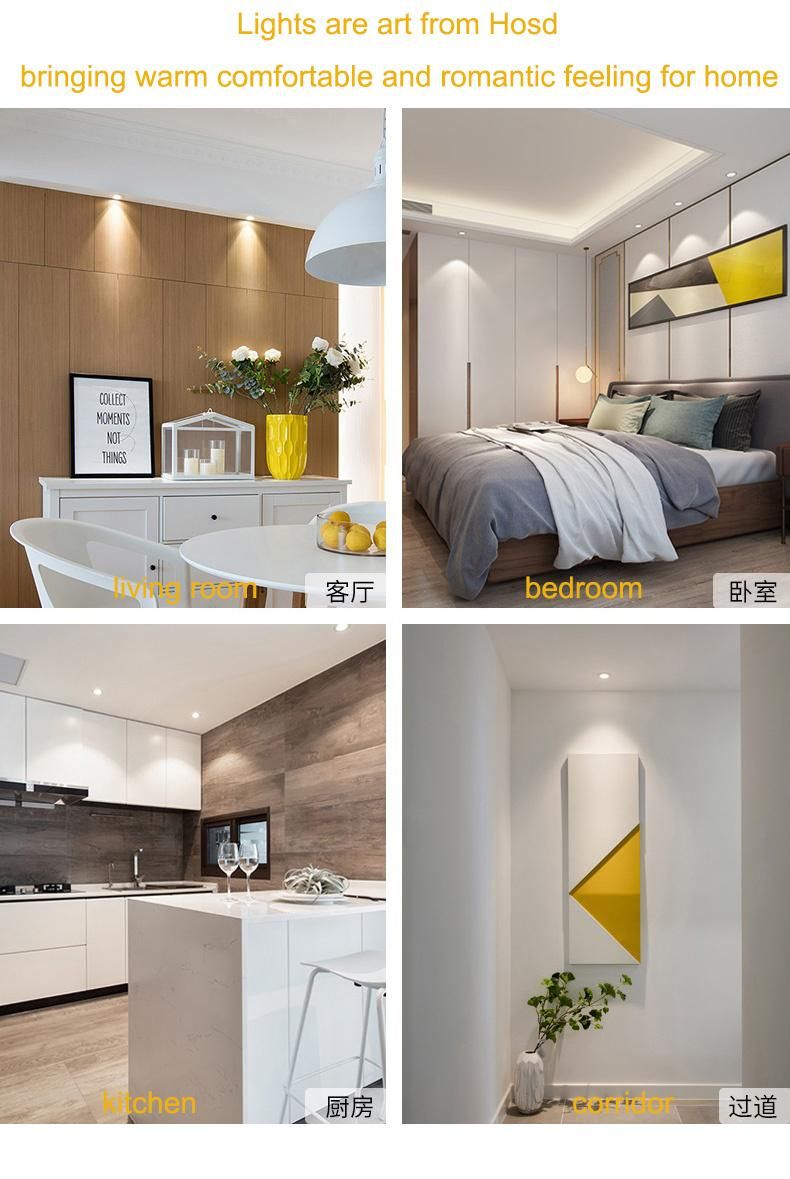

* Suitable for hotel, villas, club, win bar, residetional and commercial area

* Long Life span up to 50,000 hours



Model	Lumens (lm)	Beam Angle	Dimension (Dia.x H mm)	Cut-out (mm)
SLD51A/B/C-5W	500	15°24°38°	63/63*63	55
SLD51A/B/C-8W	800	15°24°38°	85/85*71	75
SLD51A/B/C-12W	1200	15°24°38°	85/85*76	75
SLD51A/B/C-20W	2000	15°24°38°	85/85*93	75
SLD51A/B/C-25W	2500	15°24°38°	105/105*99	95
SLD51A/B/C-35W	3500	15°24°38°	130/130*115	120

FAQ:

Q1: Are you a factory manufacturer?

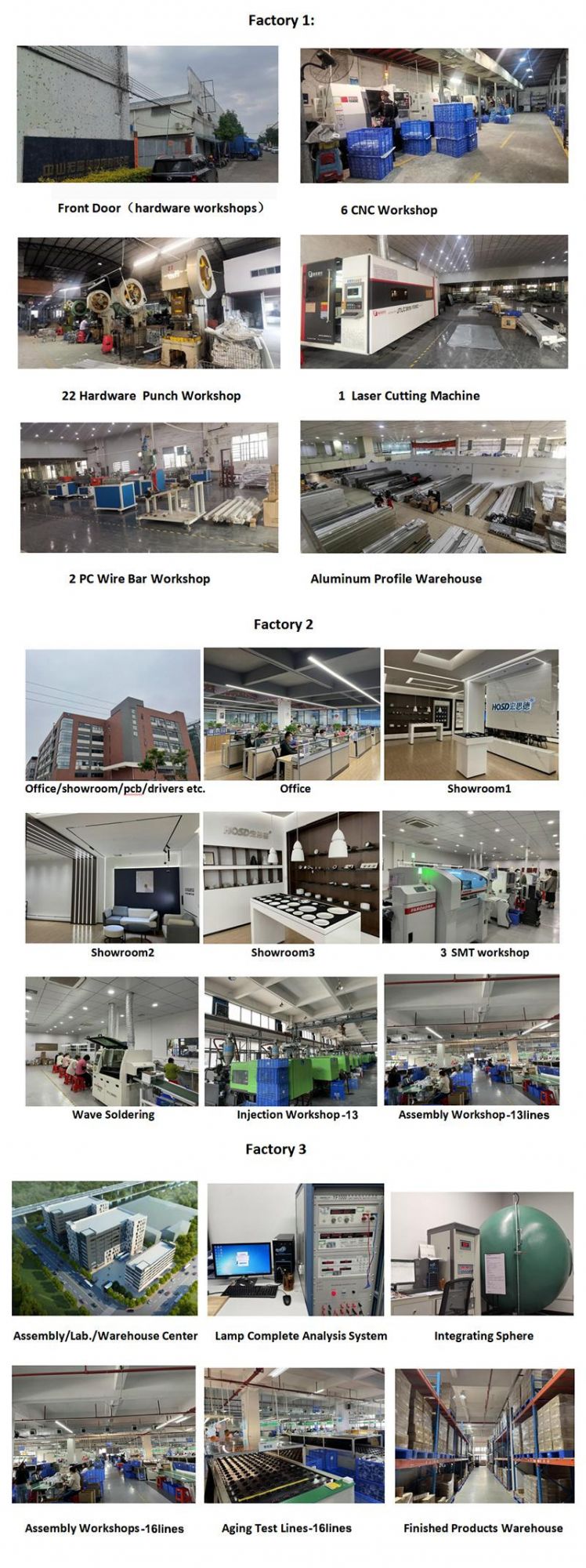

A1: Yes, we are. HOSD Lighting is a purely and professional original manufacturer, we have three own factories now.

Q2. Do you have the ability to develop OEM new products and how long to make mould samples?
A2: Yes, our structure engineers can make CAD and 3D drawing and development new products based on the requirements of client. we have mould workshops of punched, injection and die-casting products, mould samples are faster much.

Q3. Can I have a sample order for the item we insterest?
A3: Yes, we accept sample order to test and check quality. Mixed models are acceptable.

Q4. What's the lead time for sample and bulk order?

A4: 3-5 days for samples, 2-4 weeks for batch bulk order.



Q5. What is the quality process of lights and what is warranty time of products?

A5: Our factory passed GBT19001-2016 and ISO9001-2015, 100% finished products passed test aging before packing. we offer 2-5 years guarrantee to all our products.



Q6. How to deal with the products fail in period of guarantee?

A6. For parts fail in guarantee, we will send free replacements with new order for small quantity. For fail batch products, we will repair and resend them without our own shipping account or we negotiate the best solution together.



Q7. What type test report can you offer for your led indoor and outdoor light?

A7. We have own lab. and can offer IES report, Photometric report, LM80 reports Etc.
