• Model NO.：MB-C01-25W-CR80,CT90
• Installation：Recessed
• Lamp Installation：Screw Holder
• Switch Type：Touch On,Off Switch
• Warranty：3 Years
• Application：Engineering, Home Furnishing, Office Lighting
• IP Rating：IP44
• Certification：CE, EMC, Energy Star, ETL, GS, LVD, RoHS, SAA, UL, VDE
• CRI：80+,90+
• Wattage：20W,25W
• Housing Color：White
• COB Brand：CREE, Epistar, Citizen
• LED Color：Warm White, Natural White, Cool White
• Hole Size：90mm
• Transport Package：1PCS,Box
• Specification：CE, RoHS, ETL, SAA
• Trademark：Maxblue
• Origin：Shenzhen China
• HS Code：94054090
• Production Capacity：20, 000PCS,Week

Overview Product Description



This new led retrofit downlight bulb is designed with 20/25W cree COB chips,  A1070 cold forging aluminum heat sink and 1pcs high efficient  20//36 degree reflector to give out up to 1200lm. It is ideal to replace the traditional halogen lamps and be used as commercial and indoor residential lighting, such as in hotels, shops, offices, lobbies, corridors, etc.

Product Feature:

-CREE XLamp CXA series COB light source, Sharp and Lustrous chipset for your option
-A1070 cold forging aluminum heat sink
-Recessed mounting
-Brand driver option with three-year warranty
-Up to 70% energy savings compared to halogen lamps
-Long lifetime of 50,000 hours
-Environmentally friendly, without mercury or any other hazardous substances
 Product Parameters

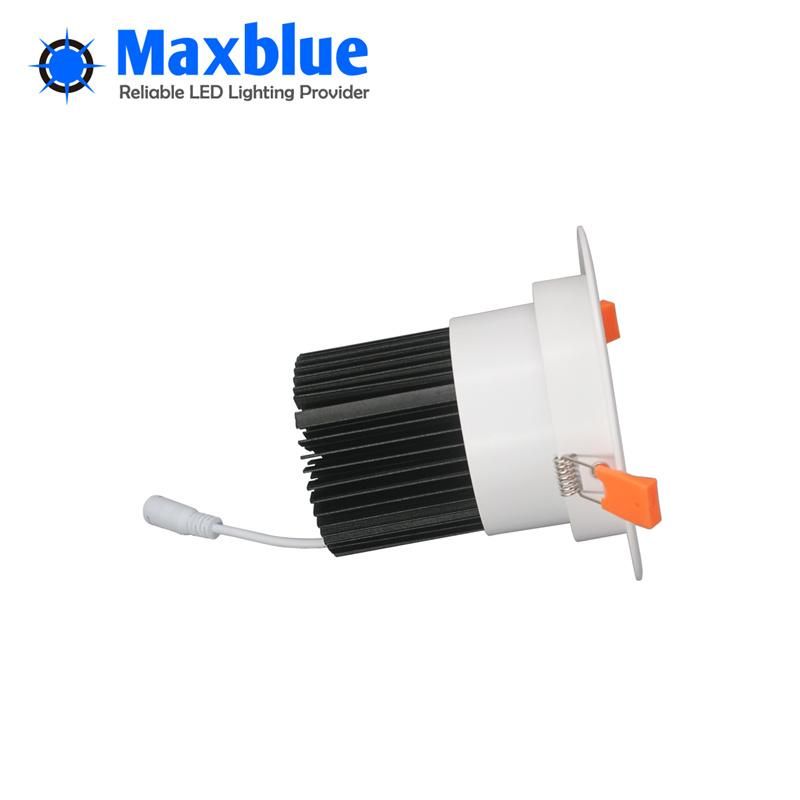

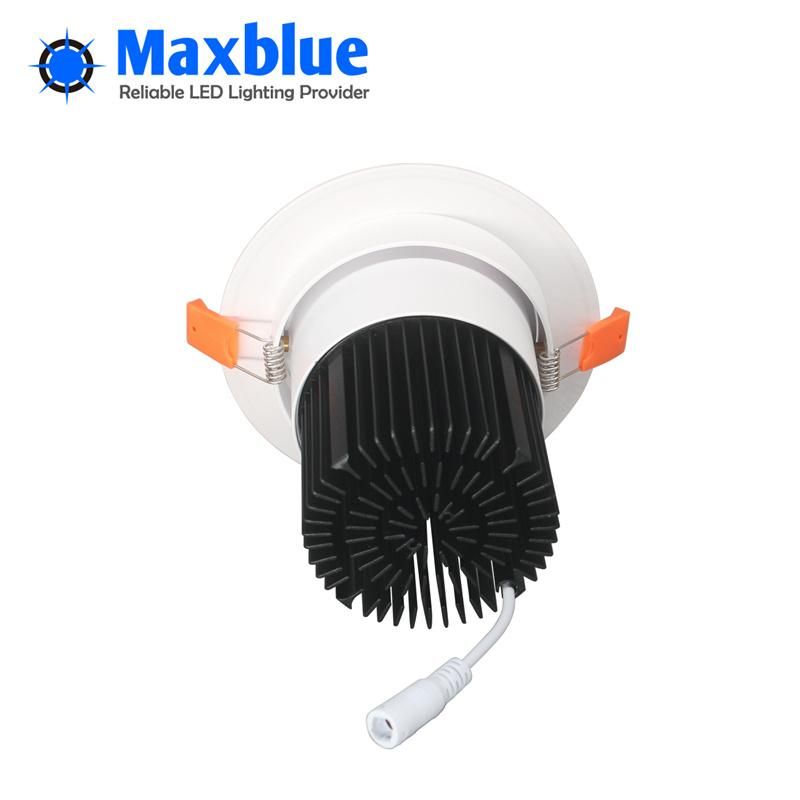

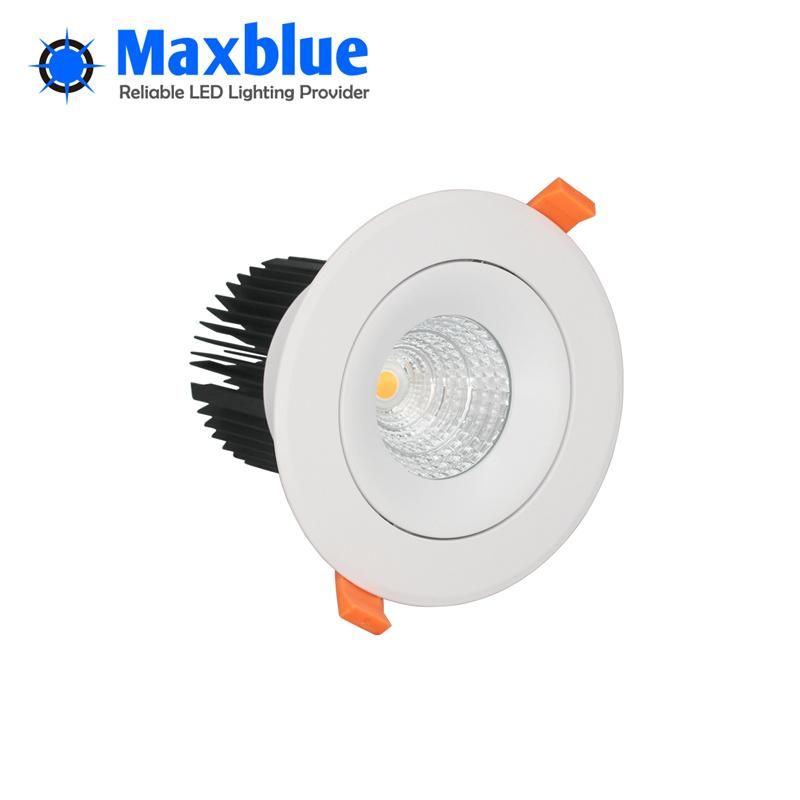

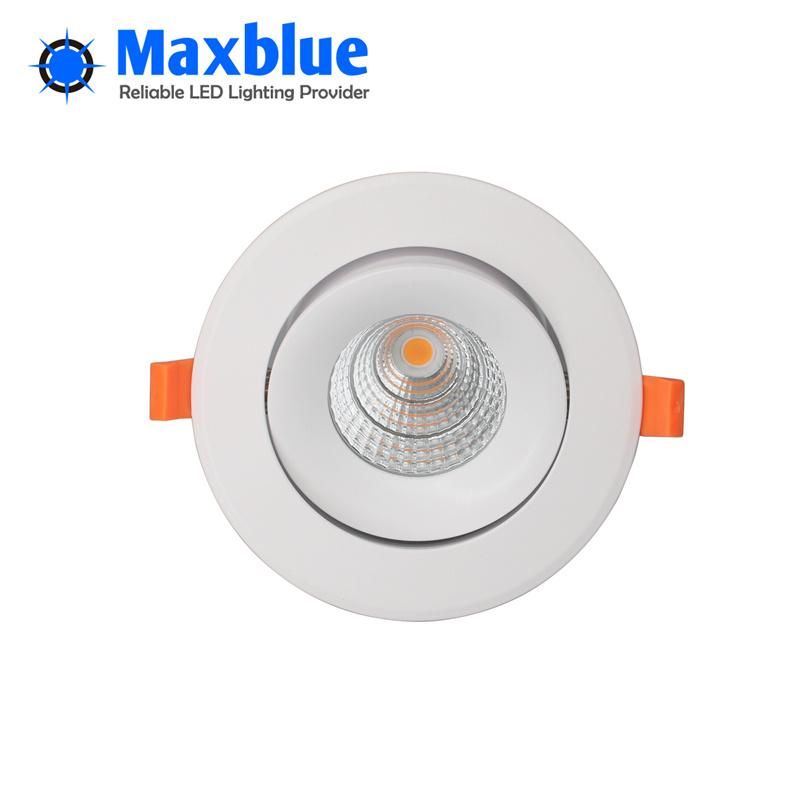

Name20/25W Cree/Citizen cob led shop ceiling lighting fixturesPart No.MB-C01-20W-CR80Related wattage:20WInput voltage:100~240VACEquivalent conventional lamp power75 WOperating frequency:50/60 HzPower factor0.9Beam angle20/36 °LED brand & QtyCREE/Citizen COBSurface finishWhiteLuminous flux1800 lmColor temperature2700K/ 3000K/ 4000K/ 5000KColor rendering index80Ra ( 90Ra option)Light colorwarm white/ nature white/ cool whiteHeight122 mmDiameter 142 mmCutting hole110-115mmGross Weight1100 gDimmablenon dimmableMain materialAluminum alloyWorking temperature-20~45°CStorage temperature-20~80°CLifespan 50,000 hrsCertificates & standardCE, RoHSWarranty3-5 years Detailed Photos



 Installation Instructions



OUR MISSION

Vision:

For better lighting the world and keeping the blue sky maximum.

Mission:
To be one of the best products and service brands in Led lighting industry.

Core Value:
We would like to follow the advanced technology to develop the products with:
Eco-friendly & Energy-saving: make less CO2 emission with using led products.
Reliable: our strict quality control system makes sure the products work in stability within the life span.
Affordable: offering the reasonable price to make sure the end user enjoy the latest technology.

ABOUT US

Established in 2009, Maxblue Lighting Co., Ltd., with own branches of R&D, manufacturing and marketing, is specialized in Indoor Led lighting and commercial Led decoration, devoting to delivering eco-friendly, affordable and stable Led products for the customers. Now we focus on led flexible strip, led linear light, led cob downlight, led panel light, led track light, led wall washer etc.

With our ISO9001:2008 certified facilities, plus two SMT production lines and one fully-automatic reflow machine, we can manufacture above 50000 units of CE- and TUV-marked items per month in the 5000 square meters factory. To develop innovative products cater to different market needs, we have 12 RD engineers and 15 QC staff, well knowledgeable about optical, electrical and thermal design and management. And the OEM/ODM sample orders can be tailored within 7 working days per customer's requirements.

Based on our continuous efforts and outstanding quality control polices, we developed rapidly in the past five years, and the products are well welcomed in European, North/South America, Japan and other Asia countries. And also in some countries, Maxblue has been distributing by some partners. If you have interests, warmly welcome you to join us for better lighting the world.

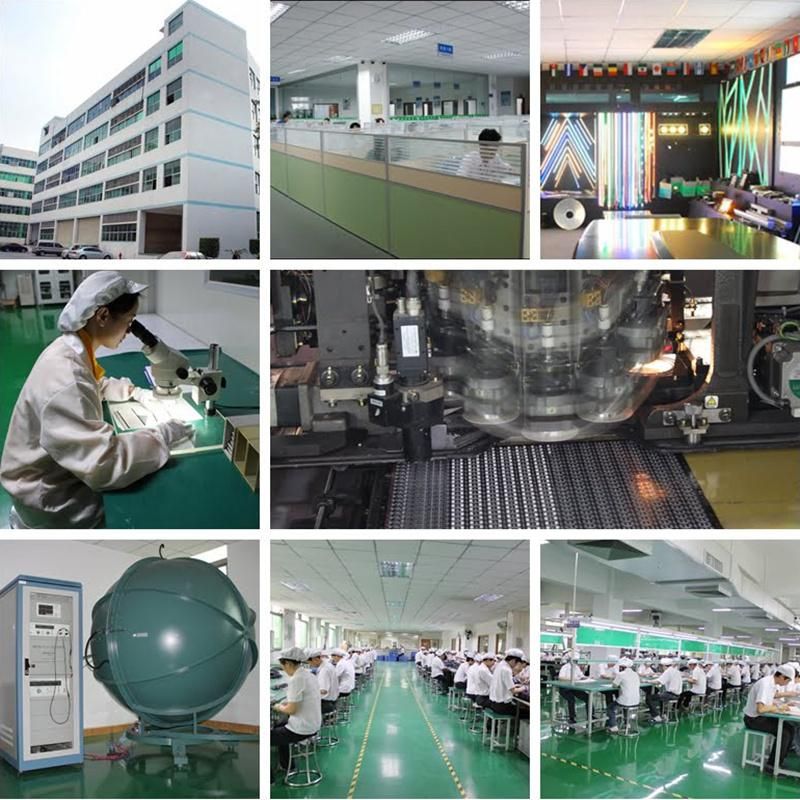

FACTORY VIEW



 FAQ



Q1: Are you a manufacturer?
Yes, we are. You can check more in our website: maxblue.en.made-in-china.com

Q2: Do you have the MOQ request?
For our developed products, there is no MOQ for the standard products.

Q3: How long can I get my order?
The lead time 3-7 working days for sample, and 7-15 working days for bulk order. Sometimes it is shorter or longer according to stock and quantity. And shipping time is around 5-30 working days depends on shipping methods you choose.

Q4: What is warranty time for your products? If any broken, what I will do?
5 years warranty for most of our products. During warranty time, we will arrange the new replacement to you for free of charge.

Q5: Can I get OEM/ODM customized products for special application?
Of course, we provide OEM and ODM service, design and produce per customers' requirement. Such as different length, different voltage and higher lumen efficiency of led strip, different sizes of led panel, tube; special/unusal material for some lights etc.

Q6: What kinds of payment methods do you accept?
 T/T bank transfer, West Union and Paypal, L/C at sight

Q7: What kinds of shipping methods you use?
Sea: seaport to seaport, cheap, long time, suitable for big volumn orders
Air: airport to airport
Global express DHL, UPS, FEDEX, EMS, TNT: door to door, mostly used, 3-7 working days delivered.
Kinds of Post air mail etc: for small packages below 2kgs, 25-30 working days.

Q8: How to contact us?
Send your inquiry in the below for Price list and more detailed information, hot-selling and discount Now!
