• Model NO.：High Bay Light, LED High Bay Light, UFO High Bay L
• Certification：CE, C-tick, EMC, ETL, FCC, GS, LVD, PSE, RoHS, SAA, UL
• Beam Angle：120°
• LED Chips：SMD3030 2835
• Product Name：UFO LED High Bay Light
• LED Driver：Meanwell
• LED Chip：SMD 3030
• Product Type：UL cUL Dlc LED Industrial Lighting
• Shape：UFO,Round
• PF：>0.95
• IP Grade：IP65,IP67,IP68
• Body Colour：Black,White
• Function：1-10V Dimmable, Daylight Sensor, Motion Sensor
• Material：Die-Cast Aluminum, Scratch and Fade Resistant
• Cover Type：PC Lens Cover or Tempered Glass Cover
• Driver Shape：Round Driver or Rectangle Driver Bracket
• Installation Methods：Suspending Ring, Suspending Chain, Supporting Rod
• Certifications：SAA, PSE, UL, cUL, Dlc, TUV, GS, CB, FCC, CE, RoHS
• Warranty：Meanwell Driver 5 Years, UL CE Driver 3 Years

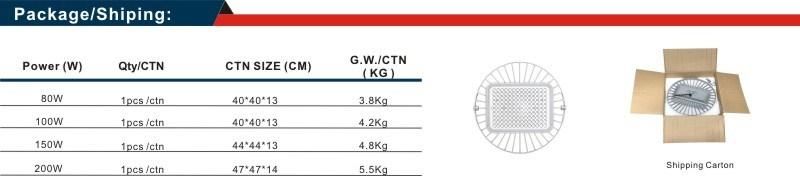

• Transport Package：Pearl Foam Inner Box and K=K Carton

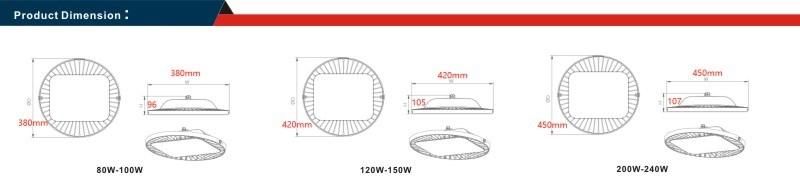

• Specification：D290*H170, D340*H180, D400*H194MM
• Trademark：ATA
• Origin：Made in China
• HS Code：9405409000
• Production Capacity：300000piece,Pieces ,Month

Basic Info.

Model NO. High Bay Light, LED High Bay Light, UFO High Bay L Certification CE, C-tick, EMC, ETL, FCC, GS, LVD, PSE, RoHS, SAA, UL Beam Angle 120° LED Chips SMD3030 2835 Product Name UFO LED High Bay Light LED Driver Meanwell LED Chip SMD 3030 Product Type UL cUL Dlc LED Industrial Lighting Shape UFO/Round PF >0.95 IP Grade IP65/IP67/IP68 Body Colour Black/White Function 1-10V Dimmable, Daylight Sensor, Motion Sensor Material Die-Cast Aluminum, Scratch and Fade Resistant Cover Type PC Lens Cover or Tempered Glass Cover Driver Shape Round Driver or Rectangle Driver Bracket Installation Methods Suspending Ring, Suspending Chain, Supporting Rod Certifications SAA, PSE, UL, cUL, Dlc, TUV, GS, CB, FCC, CE, RoHS Warranty Meanwell Driver 5 Years, UL CE Driver 3 Years Transport Package Pearl Foam Inner Box and K=K Carton Specification D290*H170, D340*H180, D400*H194MM Trademark ATA Origin Made in China HS Code 9405409000 Production Capacity 300000piece/Pieces /Month

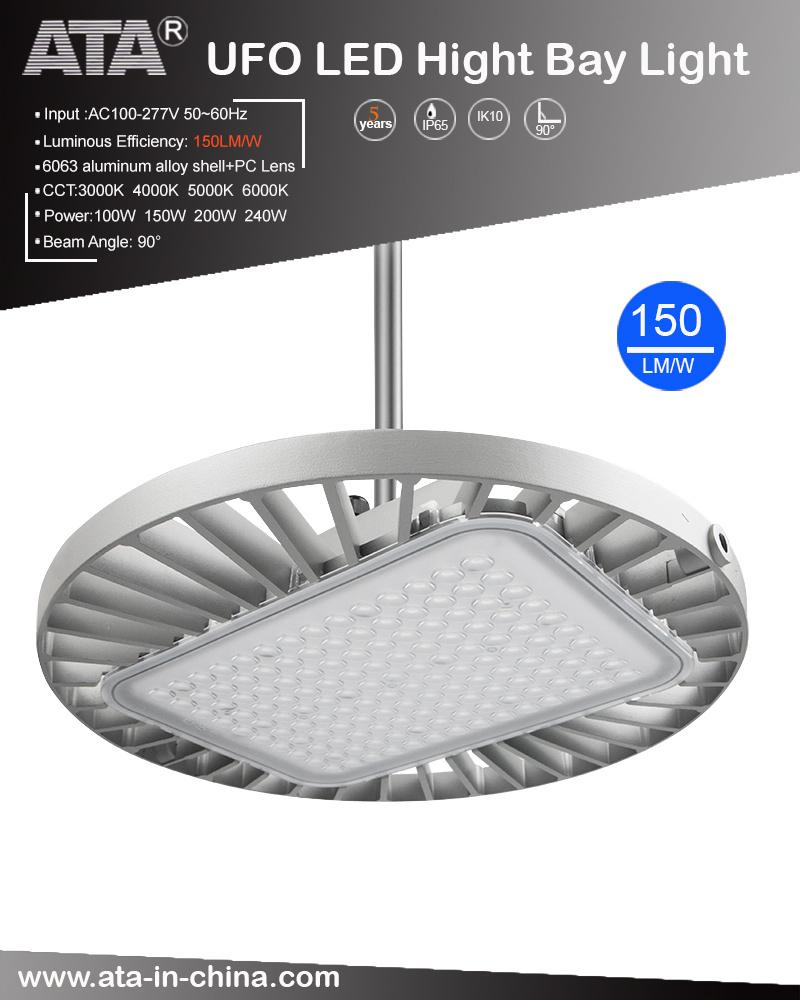

Product Description

Product Advantages:
1.  3030 SMD LED, 150LM/W
2. Meanwell or UL CE driver, 100-277VAC
3. Die-cast aluminum ADC12, scratch and fade resistant, efficient cooling structure
4. Wide aluminum plate + large diameter PCB, heat dissipation fast and evenly
5. One-piece PC lens and high-quality silicone ring for excellent airtight effect, dust-proof
6. Two kinds of covers for choice: PC Lens Cover or Tempered Glass Cover
7. Two kinds of driver shape for choice: Round driver or Rectangle driver bracket
8. Housing can be added traditional aluminum cover or PC cover
9. Fixed Ring Color: black, orange, blue, yellow, red
10. Optional Function: 1-10V dimmable, daylight sensor, motion sensor, microwave sensor
11. Installation Methods: suspending ring, suspending chain, supporting rod, hook, bracket (can be adjustable 180 degree)
12. Certifications: SAA, PSE, UL, cUL, DLC, TUV, GS, CB, FCC, CE, RoHS
13. Warranty: Meanwell driver 5 years, UL CE driver 3 years

Product Description
PF>0.95, CRI >80Ra, THD<15%
Anti-thunder: 4KV
IK Grade: IK10
Surge Protection: 10KV
LED Junction Temperature: ≤65°C
Working Temperature: -40ºC~+50ºC
Humidity: 10%~90%RH

Meanwell driver, 100-277VAC, 90-305V, 180-528V also available
Optional Function: DALI, 1-10V dimmable, daylight sensor, microwave sensor
Material: Die-cast aluminum, Optical lens, stainless screws
Ideal mounting height: 8-15 m
Simple and elegant appearance, anodized housing, durable.
Unique UFO shape, lighter and smaller, no reflector, saving much freight cost.
Wide aluminium plate + large diameter PCB, heat dissipation fast and evenly.
All stainless screws prevent bad situation.
One-piece PC lens and high-quality silicone ring for excellent airtight effect, protecting from heavy rain and dust in tunnel lighting circumstances

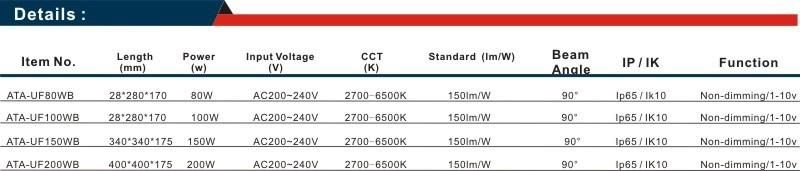

Technical Specifications
LED type: SMD 3030, LM80 TM21 certified, Up to150lm/W
Driver brand: Meanwell
Power: 100W, 150W, 200W, 240W
PF>0.95
CRI> 80
Material: Die-cast aluminum, PC lens and stainless screws
Working voltage: 100-277V
Luminous Efficiency: 150LM/W
Color temperature: 3000K, 4000K, 5000K, 6000K, 6500K
Beam Angle: 60 /90/120°
Dimmable: 1-10V dimmable, daylight sensor, motion sensor, microwave sensor
Surface color: Black/White
IP Rating: IP65
Life-span: 50, 000 hours


Installation: suspending ring, suspending chain, supporting rod, hook, bracket (can be adjustable 180 degree)

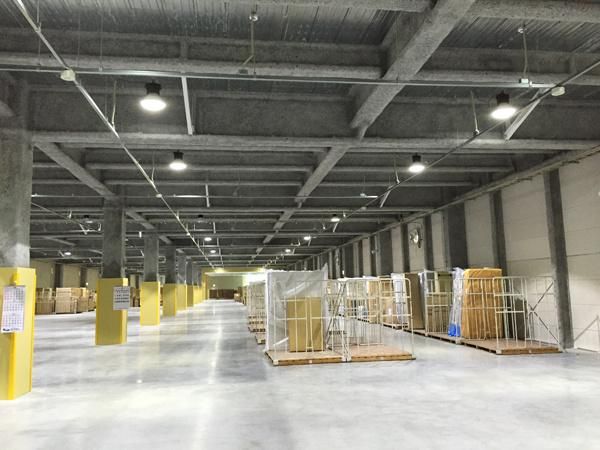

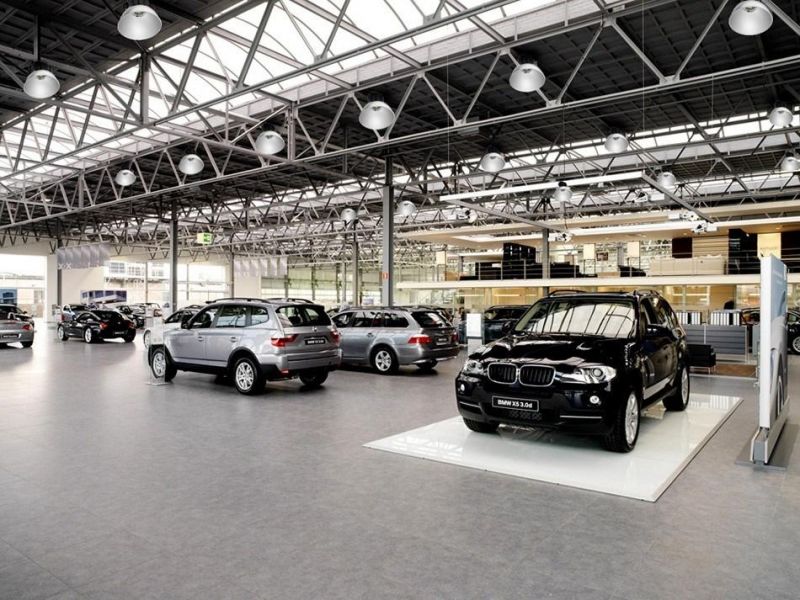

Applications
1. factories, industrial production workshop, warehouse;
2. gym, stadiums, golf courses,
3. commercial establishments, overpasses, outdoor advertising board, landmarks;
4. stage, yard, garden, lawn, park, plaza;
5. supermarket, shopping mall, exhibition hall;
6. ships, airports, subways, gas station, the train station, highway toll station, dock
7. factory, office, meeting room, conference hall, storeroom, etc.




User Manual:
Switch off power of the mains supply or respectively of the connection lead before doing any works.
Assembly must not damage or destroy conducting paths.
Make sure that the product is mounted on a stable, even and tilt-fixed background.
The complete installation must be done by an electrical expert who is familiar with the valid directives.

Quaity Control:
Stability TEST: make sure 100% of the lamps be aging test at least 48hours
Lighting TEST: make sure 100% of the lamps be lighted before packing
Drop TEST: make sure every single light have been well protected by box
