• Model NO.：SN-PL-R
• Base Material：Aluminum
• Certification：CE, RoHS
• Voltage：85V-265V
• Beam Angle：120°
• PF：0.5
• Cut-out Size：72mm
• OEM：Available
• Transport Package：Color Box as Customer′s Requiremen
• Specification：CE RoHS
• Trademark：OEM
• Origin：Jiaxing, Zhejiang, China
• Production Capacity：120000,Month

 Items Watt  Voltage

      Color

  Temperture

 Lumen

 Dimension

     (mm)

 LED Source Ra PF

 Beam

 Angle

 Lifesapn SN-PL-R  3W 85-265V 2700-6500K 240lm   φ90*13  SMD2835  80  0.5  120°  35000hSN-PL-R  6W 85-265V  2700-6500K 480lm  φ120*13  SMD2835  80  0.5  120°  35000hSN-PL-R  9W 85-265V  2700-6500K 720lm  φ148*13  SMD2835  80  0.5  120°  35000hSN-PL-R 12W 85-265V  2700-6500K 960lm  φ170*13  SMD2835  80  0.5  120°  35000hSN-PL-R 15W 85-265V  2700-6500K 1200lm  φ190*13   SMD2835  80  0.5  120°  35000hSN-PL-R 18W 85-265V  2700-6500K 1440lm  φ225*13  SMD2835  80  0.5  120°  35000hSN-PL-R 24W 85-265V  2700-6500K 1920lm  φ300*13  SMD2835  80  0.5  120°  35000h
2.Features:

1. Non-toxic, no stroboscopic.

2. Multiple light filter more downy.

3. The same brightness save electricity 80%-90%.

4. Lifespan long to 35000hours.
5. No flicking, no RF interference, no UV radiation.

6. CE and RoHS approved.
7. Leading drive design in LED filed, short circuit, open circuit, and overload protect.

8. Easy installation, anti-vibration, anti-impact.

9. The whole light body does not contain mercury and other hazardous substances.

3.Packing and shipping:

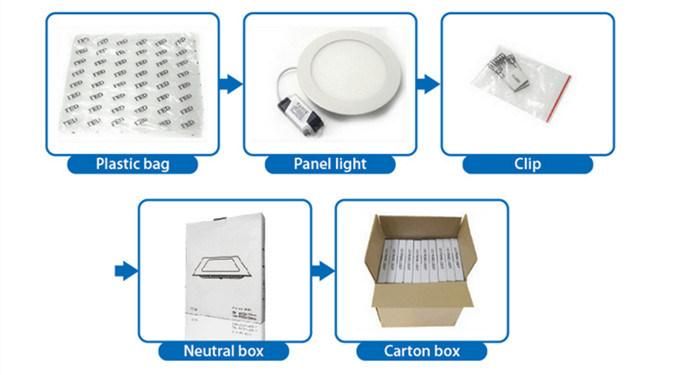

Inner package:each panel light is put into an anti-static plastic bag,then into a box.

Outrer package: 40pcs panel lights will be put into an outer carton.

Notes: Color box with customer's logo or information is available based on mass quantity.

Shipping: Small quantity or samples can be shipped by Express like FedEx, USP or DHL...etc.;bigger quantity can be shipped by sea or by air.

4.Application:
1. Store, plaza, mall, supermarket, department, and warehouse lighting.
2. show room and museum lighting.
3. School, hospital, office, meeting room, home, residential area lighting.
4. Bar, restaurant, hotel, film cinema, coffee bar, dining room, hall and lobby lighting.
5. Parking ground, subway station, railway station, airport, and other indoor public place.

5.Trade terms & our sevice:

1. Payment term: TT 30% in advance, balance against the copy of B/L or LC at sight.

2. Delivery time: Within 7 days for samples, 25-30 days for bulk orders afte confirmation.

3. Shipping port: Shanghai or Ningbo.

4. Disounts are negotiable according to quantity.
5. All inquiry or question from yu will be replied in 12 hours during working day.
6.We offer OEM services, your own logo can be printed on products.
7.We have experienced R&D engineers and we have strong ability to do ODM projects.
8.Your ideas of design and all your private informaton will be protected.
