DC48V Mainless Lighting System Shop Light Linear Commercial Magnet Rail Spot Pendant Magnetic Track Light
World-Dawn Lighting Co., Limited- Color Temperature：Warm White
- Lamp Body Material：Aluminum
- Power：18W,26W,36W,52W
- Emitting Color：Warm White
- IP Rating：IP44
- Certification：CE, RoHS
Base Info
- Model NO.：MM30-303
- Input Voltage：100-265V
- LED Chips Brand：Epistar
- Transport Package：Carton
- Specification：Magnetic Light
- Trademark：WORLD-DAWN
- Origin：Zhongshan, China
- HS Code：9405429000
- Production Capacity：50000PCS,Year
Description
Basic Info.
Model NO. MM30-303 Input Voltage 100-265V LED Chips Brand Epistar Transport Package Carton Specification Magnetic Light Trademark WORLD-DAWN Origin Zhongshan, China HS Code 9405429000 Production Capacity 50000PCS/YearProduct Description
Magnetic Track Light LED Linear Ceiling Down Lights Pendant Light
Well improved solution for Magnetic lighting system
Features:
Input: 48V
CRI >90, IP44
Beam angle 15°/25°/36°/40°/100° etc
Function: Tuya/Bluetooth

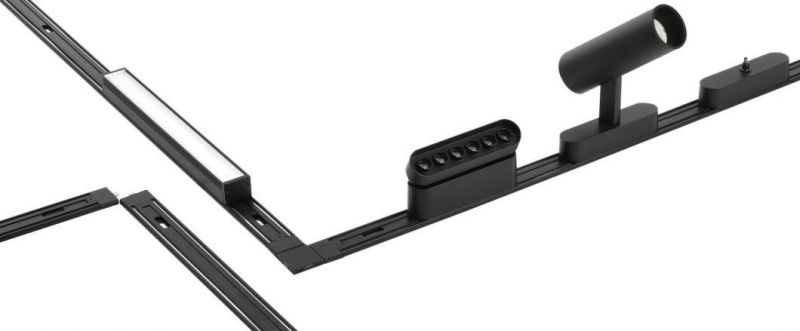

Surface Mounted Magnetic lighting system
Ultra Slim 5mm thickness design , Maximize Space from ground to ceiling utilization
No need to cut on ceiling like other regular magnetic solution when make recessed installation
Simplified Design Ultra Slim Track 5mm Accurate Optical control Optional Modules

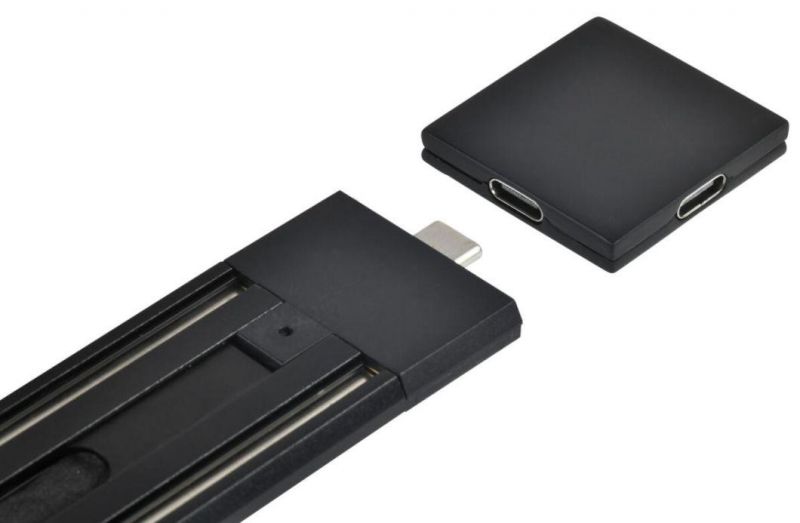

Easy Maintance Convenient Connection By Type-C C connection
Tuya & Bluetooch could be supported once requested.
| Item No. | Power | Size (mm) | Cutting (mm) | Materials & colour | Driver Voltage | CRI | Beam Angle | Warranty |
| MM30-01-A01 | 6W | 293.5*30*23.3 | Linear lamp | aluninum white/black | 48V | 90 | 97°+87°/ 40°+100° 25°25°+25° | 3 years |
| MM30-01-A02 | 12W | 579*30*23.3 | Linear lamp | aluninum white/black | 48V | 90 | 97°+87° /40°+100° 25°/ 25°+25° | 3 years |
| MM30-01-A03 | 21W | 1150*30*23.3 | Linear lamp | aluninum white/black | 48V | 90 | 97°+87° /40°+100° 25° / 25°+25° | 3 years |
| MM30-02-01 | 8W | 129.5*30.9*66.5 | Grille Module with Rotating Angle 30° | aluninum white/black | 48V | 90 | 18° 24° 36° | 3 years |
| MM30-03-01 | 12W | 260*30*32.9 | Oval Grille Module | aluninum white/black | 48V | 90 | 18° 24° 36° | 3 years |
| MM30-04-01 | 6W | 260*30*32.9 | Oval Decorate Module | aluninum white/black | 48V | 90 | 120° | 3 years |

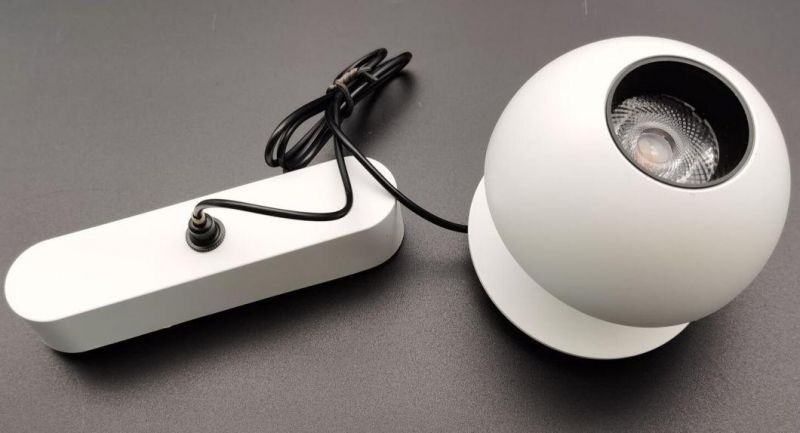

| MM30-05-01 | 15W | 193.3x77.6x95.7mm | Spotlight module | aluninum white/black | 48V | 90 | 15° 24° 36° | 3 years |

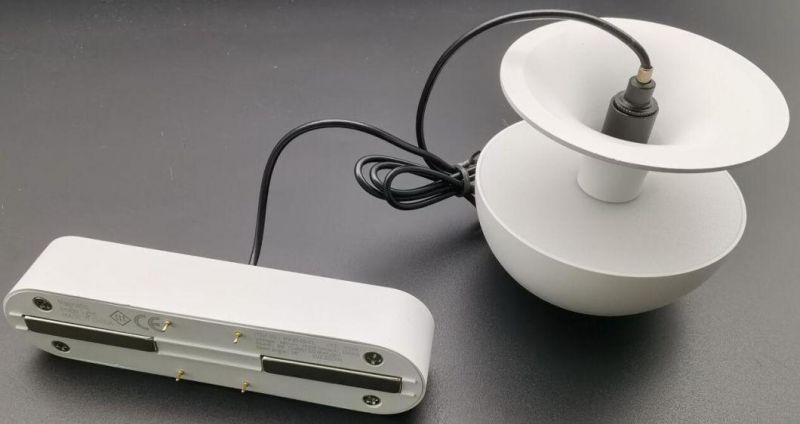

| MM30-06-01 | 8W | 125.5* φ85 | Pendant Module | aluninum white/black | 48V | 90 | 18°/24°/36°/55° | 3 years |
| MM30-06-02 | 3W | 125.5*φ60 | Pendant Module | aluninum white/black | 48V | 90 | 100° | 3 years |
| MM30-06-03 | 6W | 125.5*φ85 | Pendant Module | aluninum white/black | 48V | 90 | 110° | 3 years |
| MM30-06-04 | 9W | 125.5*φ85 | Pendant Module | aluninum white/black | 48V | 90 | 113° | 3 years |
| MM30-303 | Profile | 300*32.6*5 | Surface Installation | aluninum white/black | ||||
| MM30-306 | Profile | 600*32.6*5 | Surface Installation | aluninum white/black | ||||
| MM30-312 | Profile | 1200*32.6*5 | Surface Installation | aluninum white/black | ||||
| MM30-L | L-type connecting track | Surface Installation | aluninum white/black | |||||
| MM30-X | X-type connecting track | Surface Installation | aluninum white/black | |||||
| MM30-D01 | 100W | 258*32.6*55mm | LED DRIVER AC220V to 48V | aluninum white/black |

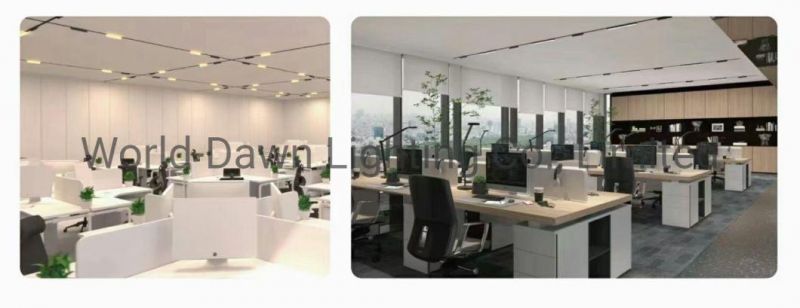

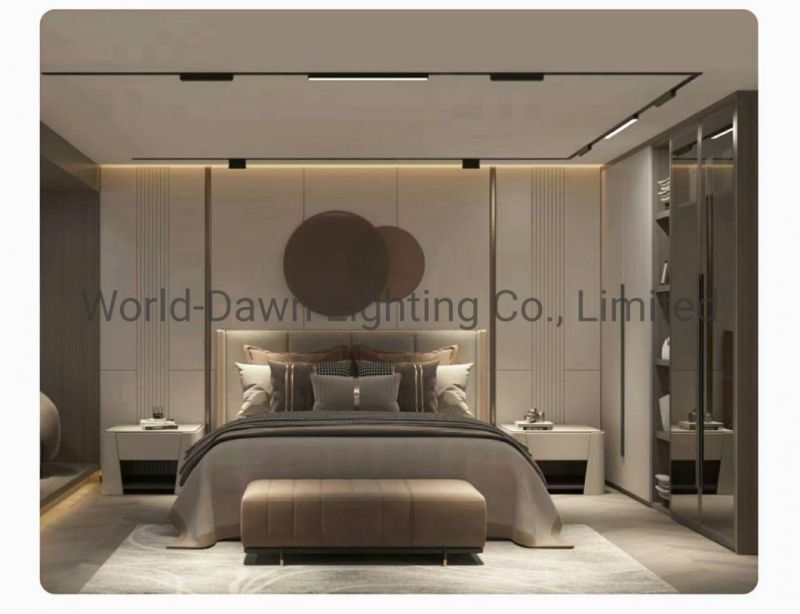

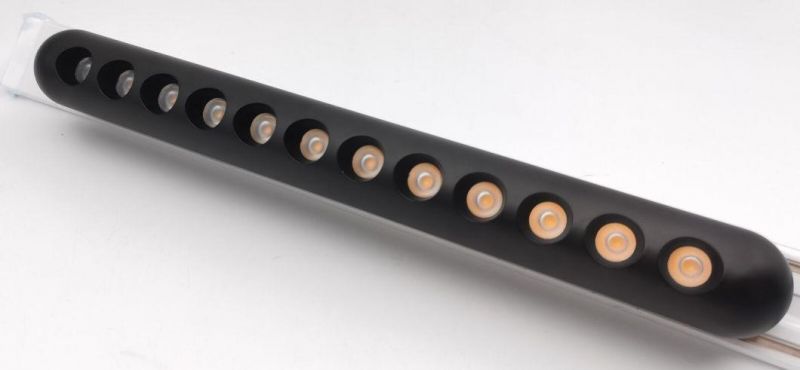

Atmosphere Magnetic LED linear Track light, widely be used in office, shopping
mall, restaurant, school, home, factory and other indoor
lighting.
Our product offers not only high performance,style and
affordability,but also provides significant energy savings
and long life time that eliminate the need for yearly
maintenance.

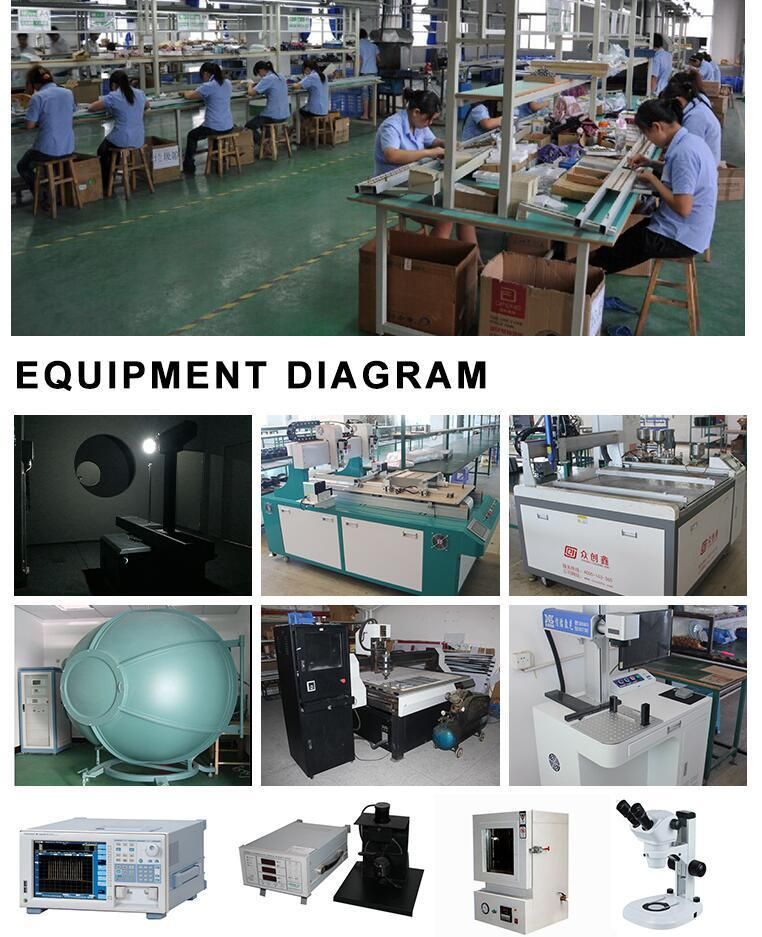

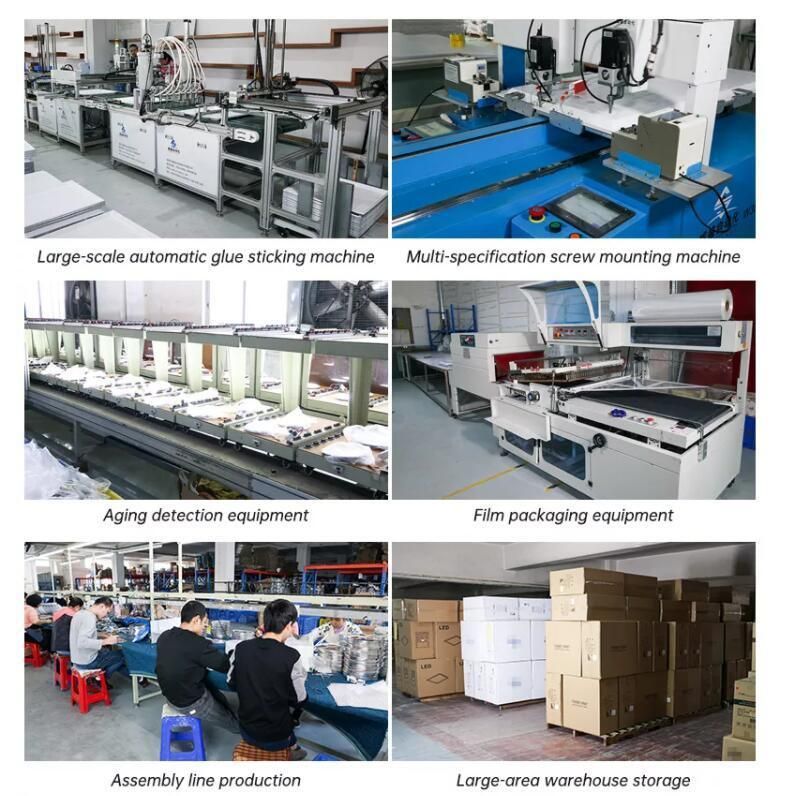

Production
