• Model NO.：YB01Z Series
• Base Type：Fixure
• Voltage：100V-277V
• Beaming Angle：30°,60°,90°,120°,Asymmetric
• Transport Package：Carton
• Specification：32W-225W
• Trademark：ADDLUX
• Origin：China
• HS Code：9405409000
• Production Capacity：500000 Pieces,Year

Basic Info.

Model NO. YB01Z Series Base Type Fixure Voltage 100V-277V Beaming Angle 30°/60°/90°/120°/Asymmetric Transport Package Carton Specification 32W-225W Trademark ADDLUX Origin China HS Code 9405409000 Production Capacity 500000 Pieces/Year

Product Description

Saso UL Ce CB 28W-150W Best Array Dimmable Industrial Linkable LED Track Linear Lights Distributor Factory Made in China for Home & Business Indoor Lighting

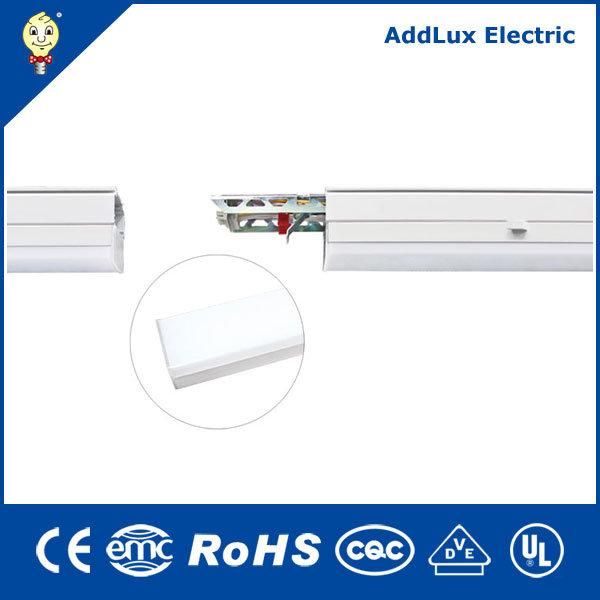

A continuous-row LED lighting system could be created only by a trunking unit and a LED luminaire. It appears as a consistent continuous-row system, without any visual interruption or different reflectors. The luminaire and trunking are perfectly matched to each other as array  dimmable linkable LED linear lights.

• Power: 28W-150W
• Rated Voltage: 100-277V
• Color Temperaturre: 3000k/4000k/5000k/6000k
• Rendering Index: Ra>80
• Dimming: NON/1-10V/DALI
• Beam Angle: 30°/60°/90°/Single/Double Asymmetric

Features of28W-150W Array  Dimmable Linkable LED Linear Lights

With a color rendering index of Ra>80, color temperatures of 3000k, 4000k, 5000k and 6000k, and low UGR, it could meet environmental requirements and comply with funding guidelines for energy-efficient building and lighting solutions.

For special applications where require high accuracy of color, such as in museum, jewelry store, pring factory and so on. CRI 95 linear series is highly recommended.



Technical Data

Item No.	Length	Power	Lumen
YB01Z0632	577mm	28W	4160Lm
YB01Z1575	1432mm	75W	9750Lm
YB01Z30150	2861mm	150W	19500Lm
YB01Z45225	4297mm	225W	29250Lm



LED Linear Lighting System

The LED linear lighting system is an energy-efficient , low maintenance better alternative to traditional linear fluorescent in a variety of industrial, commercial and light assembly applications. It is the optimal solution for conventional lighting systems and also excellent for new installations. Due to it's low installation cost, everything in one box and installtion is tool-less. It saves both time and costs when installing lighting systems. Also the LED linear lighting system is really good in terms of the low mantenance. That's typical for LED lighting and this also keep costs low.

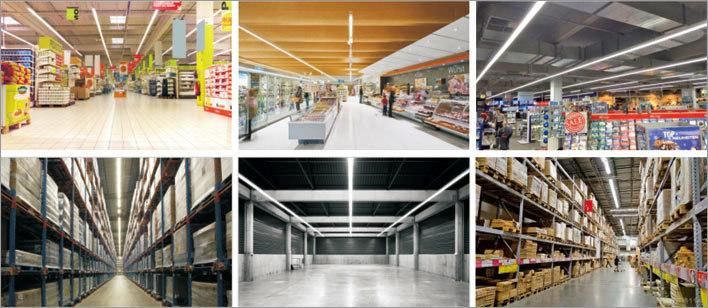

Application of array  dimmable linkable LED linear lights

• Warehouse
• Supermarket
• Underground parking garages
• Wet indoor area
• Production workshop
• Railway station
• Museum
• Laboratories
• And so on



One of LED lights always meet your requirements of widely application for home lighting or business lighting.

Application For Business Lighting

• Office Lighting
• Store Lighting
• Workshop Lighting
• Warehouse Lighting
• Bar and Restaurant Lighting
• Perimeter (Counter) Lighting
• Lobby Lighting
• Task (Workstat) Lighting
• Accent Lighting
• Guest Room Lighting
• Display Cases (Showroom) Lighting
• Exterior Lighting

Application For Home Lighting

• Living Room Lighting
• Kithchen Lighting
• Bathroom Lighting
• Bedroom Lighting
• Study Room Lighting
• Dining Room Lighting
• Closet Lighting
• Outdoor Lighting

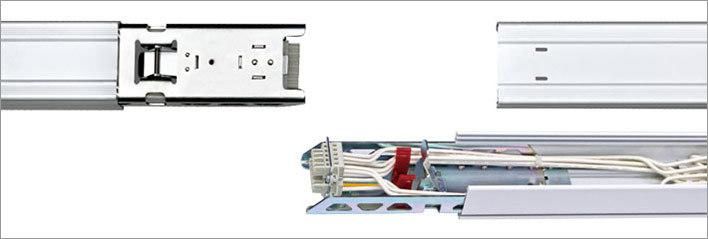

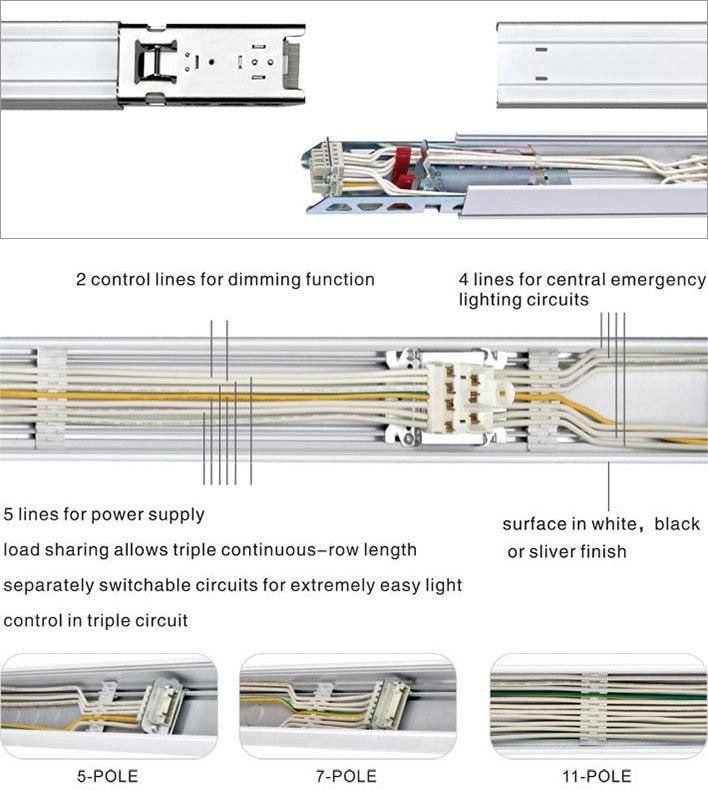

Trunking Rail

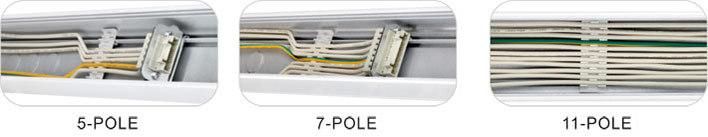

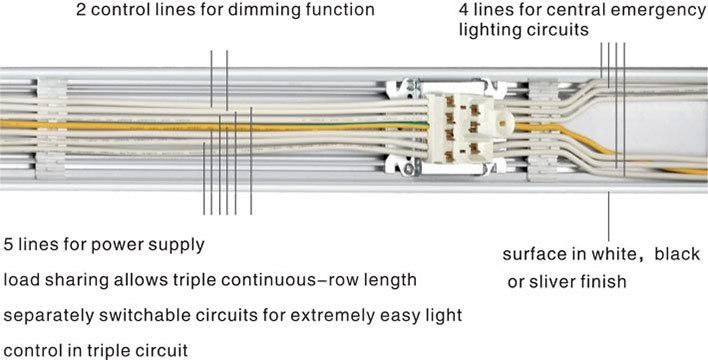

The flexible trunking system for lighting demands in all application, with full compatible modular kit, it adapts individually to complex lightingtasks. It has an 11-pole current conducting section built into its trunking. This means that the system comes ready equipped to meet tomorrow's needs. ll functions such as power suply, lighting control and connection to emergency lighting are seamlessly integrated into this multifunctional trunking. Luminaires can be positioned flexibly and the system can be adapted to suit structural alterations at any time.

The trunking rail is simply a matter of replacing or adding lighting modulars, light sources or optics as required.

• A pre-wired 3-phases & 2.5 mm power suply.
• Phase conversion function with connector.
• Allow Max 16A and 200 meters trunking length in 3-phases power supply system.
• Endless combination with diversified modulars.
• Tool-free installation
• Node connectors enable system to be connected in different directions.
• Dimming, self-battery emergency or central emergency function as options.
• Support surface ceiling mounting and suspension.

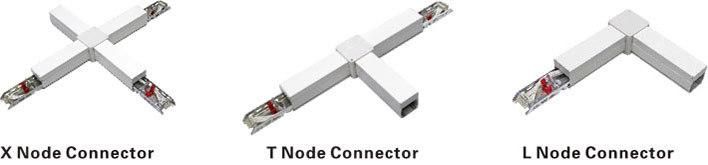

Node Connector

All system components can be combined without tools. L, T and X connectors expand the system's application range.

• Each node connector has diverse of electrical feed-in and feed-out.
• The node connector is not only to connection the cross trunking, but also to connect the wire inside the trunking. And the node connector itself could even be the electricity feed-in point.

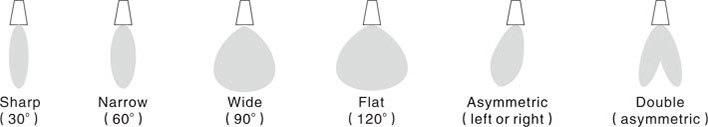

Beam Angle

Different diffuser for different distribution.


Optics

A wide range of optics from sharp to wid distribution, as well as asymmetric.

• Sharp distribution: 30 degree
• Narrow distribution: 60 degree
• Wide distribution: 90 degree
• Flat distribution: 120 degree
• Asymmetric distribution: left or right
• Double asymmetric distribution: asymmetric

DALI and Dimming System

Efficient tools for lighting are the basis for solution with low operating overheads and high quality of light. Supplemented with suitable light control savings potential can be further significantly increased. The right type of light management depends decisively on the specific building conditions and usage of the area. With a wide variety of dimming light control systems with suitable sensor technology, and thanks to open, non-proprietary standards, such solutions can be simply integrated into common building management systems.

Dimming system is suitable for complex applications for controlling rooms and storey, for daylight-dependent control and dynamic light control. 3 types of dimming are available:

• DALI dimming
• 1-10V dimming
• DIM switch



Emergency Lighting

Emergency lighting systems ensure optimum lighting and orientation, even in the event of a power failure. General lighting and emergency lighting are combined in a single highly functional, integrative lighting solution.

• A wide variety of emergency mode ia available.
• Central battery systems / generator
• EL1 EN1 & EL2 EN2 makesmode selected.
• Self contained battery.
• Under this mode, the luminaires could be 12W or 6W, working for 1.5 hours or 3 hours.(depending on the demand selected in advance)
• Ni-MH battery we used is high temperature resistant to make sure its life time could be longer than others.

A small spot light is available on 600mm moduleas an extra version featuring a rotating lighting head for emergency use of 5W.



Multi-Sensor System

Multi-sensor system combines energy saving with highly convenience for user. Most energy can be saved by integrating motion and daylight sensor.

• Group control sensor or broadcast control sensor is available under a defined period of time.
• Protect against a solid object such as a wire and protected against the ingress dust.
• Protected against splashing water from any direct.

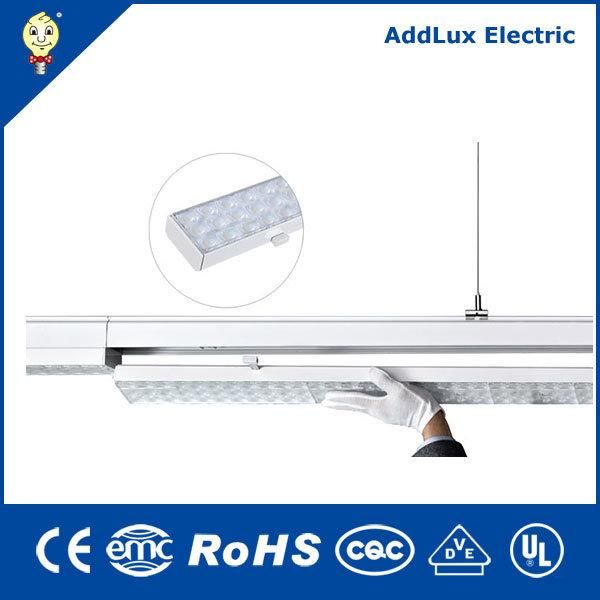

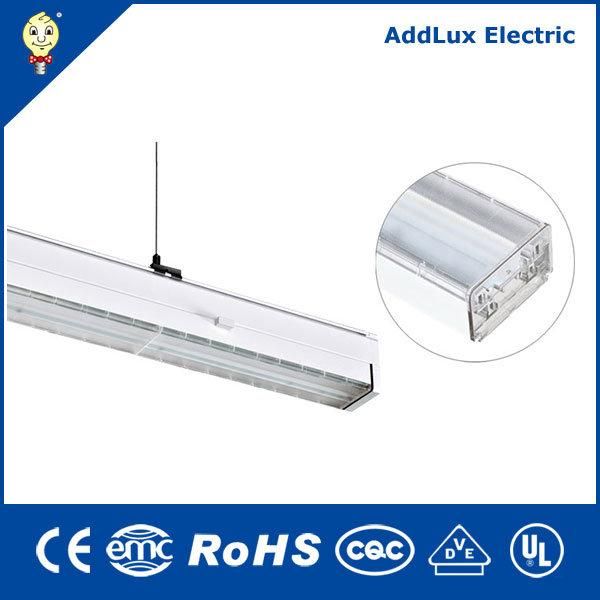

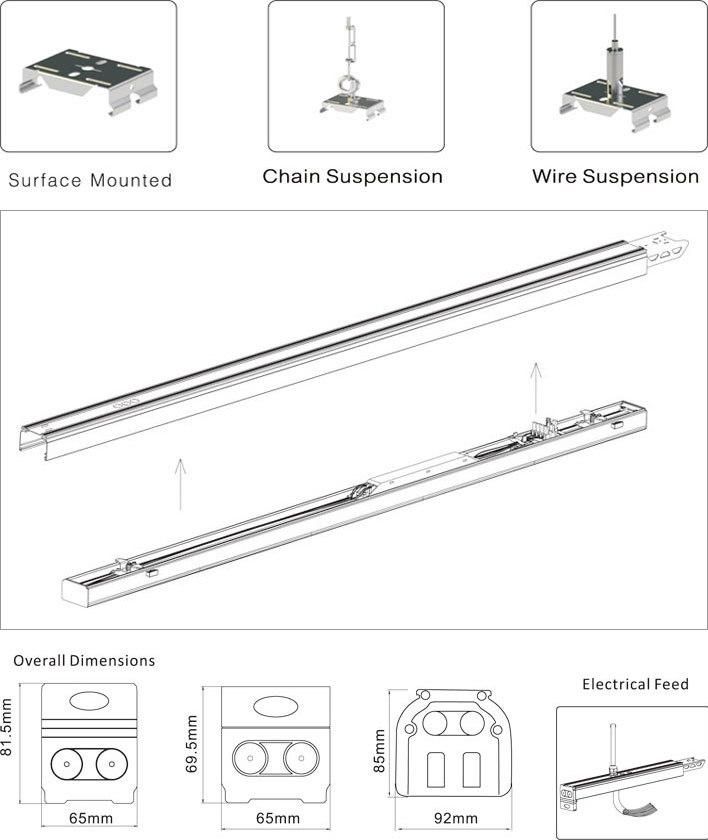

Installation

A maximum suspension span of 3m ensures quick and easy installation with fewer suspension points.

• Ceiling mounted ,wall mounted and pendant mounted all available.
• Surface mounted, chain suspension and wire suspension all available.
