Zl-502, LED Desk Lamp, Full Spectrum, Touch All-Metal Folding Reading Lamp, with Memory Unlimited Dimming High Brightness 12W, High CRI 98, Black

MEI Awards
  • Style：Modern
  • Lamp Body Material：Aluminum
  • Power：11-15W
  • Type：USB
  • Switch Type：Touch Switch
  • Base Type：1

Base Info

  • Model NO.：ZL-502
  • Power Source：AC
  • IP Rating：IP44
  • Certification：CCC, CE, CQC, EMC, FCC, GS, PSE, RoHS, UL
  • Light Source：With Light Source
  • CCT：4000K
  • Ra：98
  • Transport Package：Carton
  • Specification：206*87*413mm
  • Trademark：neutral
  • Origin：China
  • Production Capacity：100000

Description

Basic Info.

Model NO. ZL-502 Power Source AC IP Rating IP44 Certification CCC, CE, CQC, EMC, FCC, GS, PSE, RoHS, UL Light Source With Light Source CCT 4000K Ra 98 Transport Package Carton Specification 206*87*413mm Trademark neutral Origin China Production Capacity 100000

Product Description

MEI Awards is a commonweal contest organizaion. The management of products and follow-up of enquiries are all operated by the awarded enterprises.
Zl-502, LED Desk Lamp, Full Spectrum, Touch All-Metal Folding Reading Lamp, with Memory Unlimited Dimming High Brightness 12W, High CRI 98, BlackZl-502, LED Desk Lamp, Full Spectrum, Touch All-Metal Folding Reading Lamp, with Memory Unlimited Dimming High Brightness 12W, High CRI 98, BlackZl-502, LED Desk Lamp, Full Spectrum, Touch All-Metal Folding Reading Lamp, with Memory Unlimited Dimming High Brightness 12W, High CRI 98, BlackZl-502, LED Desk Lamp, Full Spectrum, Touch All-Metal Folding Reading Lamp, with Memory Unlimited Dimming High Brightness 12W, High CRI 98, BlackZl-502, LED Desk Lamp, Full Spectrum, Touch All-Metal Folding Reading Lamp, with Memory Unlimited Dimming High Brightness 12W, High CRI 98, BlackZl-502, LED Desk Lamp, Full Spectrum, Touch All-Metal Folding Reading Lamp, with Memory Unlimited Dimming High Brightness 12W, High CRI 98, BlackZl-502, LED Desk Lamp, Full Spectrum, Touch All-Metal Folding Reading Lamp, with Memory Unlimited Dimming High Brightness 12W, High CRI 98, BlackZl-502, LED Desk Lamp, Full Spectrum, Touch All-Metal Folding Reading Lamp, with Memory Unlimited Dimming High Brightness 12W, High CRI 98, Black

Desk lamp manual

Product specification

ProductName:Aluminium alloydesk lamp
Model : ZL-502

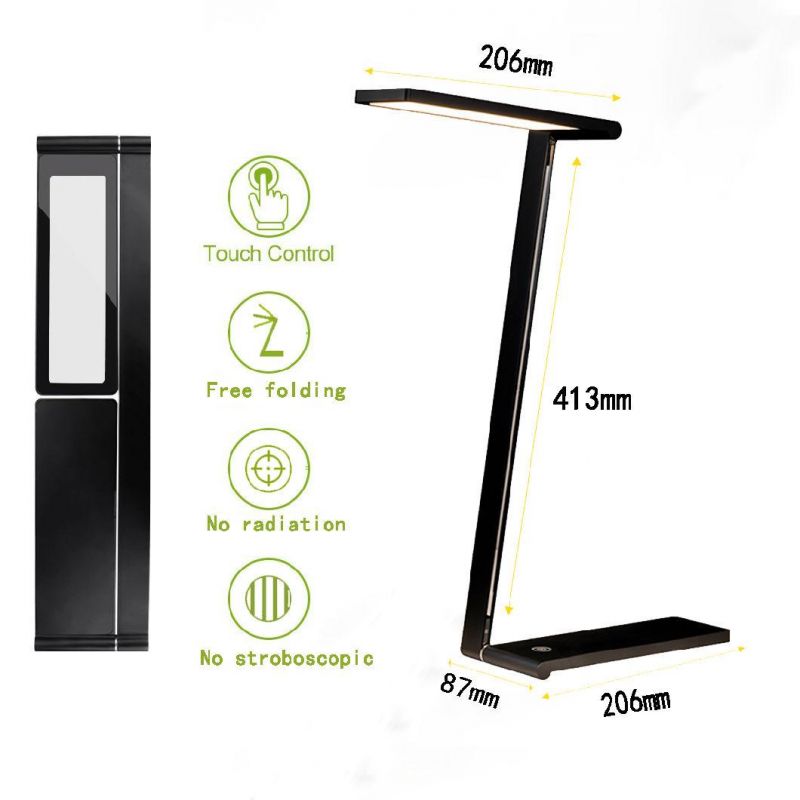

Dimension : 206*87*413mm
Input Voltage : AC100-240V 50/60Hz
Working Voltage : DC5V 2.4A
Power : 12W
Quantity of LED : 108 pcs
Central illumination :1400Lux
Lumens : 550lm
CCT : 4000K
Switch Type :Touch stepless dimming
Material:6063 aluminumalloy+Acrylic+PC
Color : Black, Grey

Parts Instruction



1 Lamp head             2 Lamp arm
3 Touch sensor switch     4 Lamp base
5 USB port

Accessories


1*Table lamp

1*AC adapter

Method of use


1 Plug the power port of lamp with adapter
2 Then plug the AC100~240V voltage
wall socket
3 To ensure the normal use of lamp, the
 original adapter is necessary.

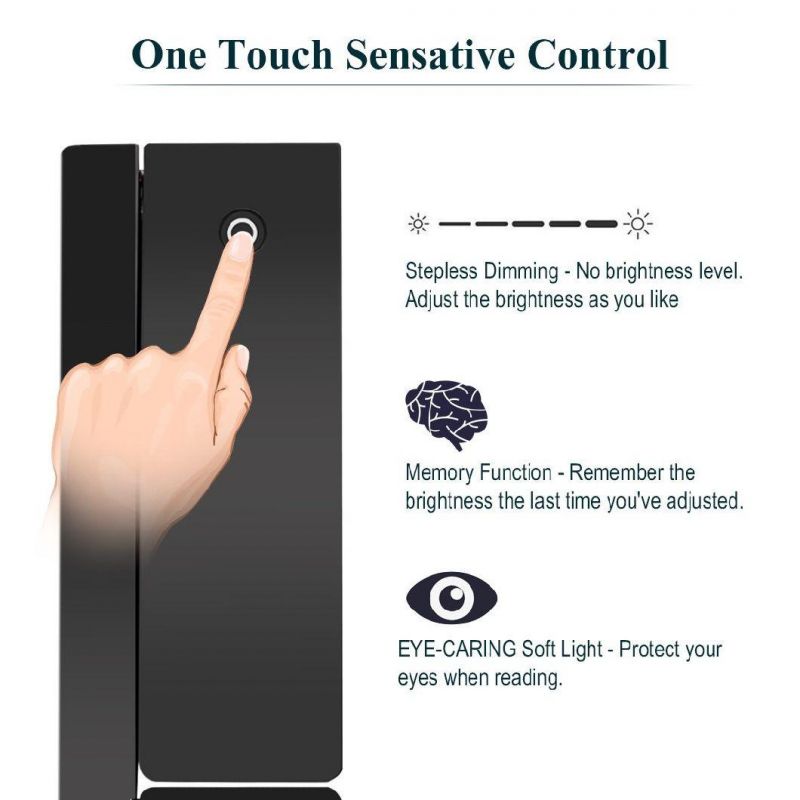

Panel presentation


1 .Tapthekey/lightkeyonthetouchpanel
withyourfingers lightorturnoffthelamp.
2.Pressthekey/lightkeyonthetouchpanel
withyourfingers adjustthebrightnessof
thedesklamp.
3.Thisdesk lamp has memory mode,itwill
rememberthe brightnesswhen itwas last
switched off.

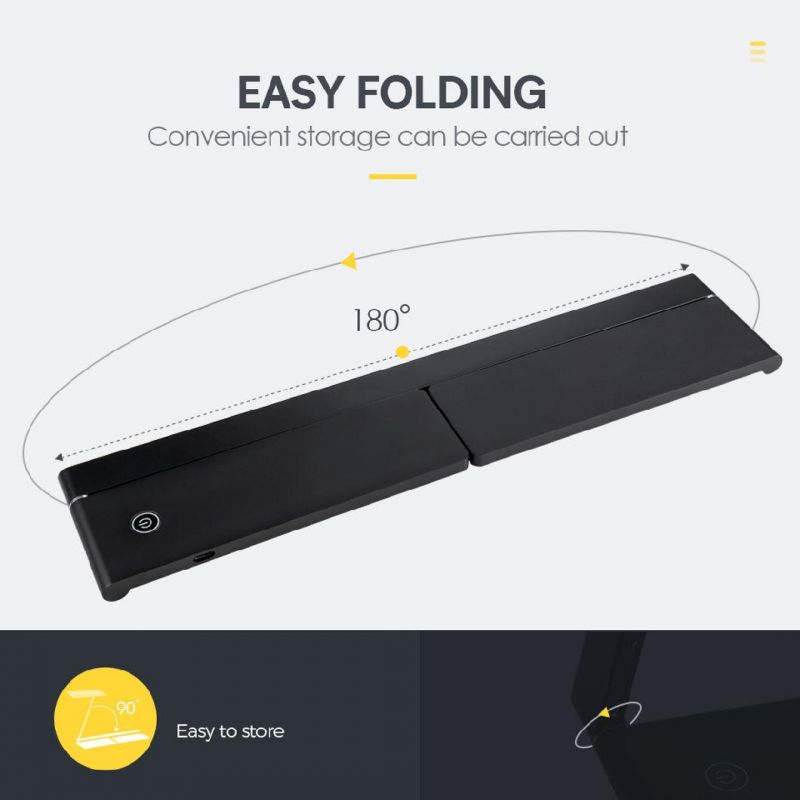

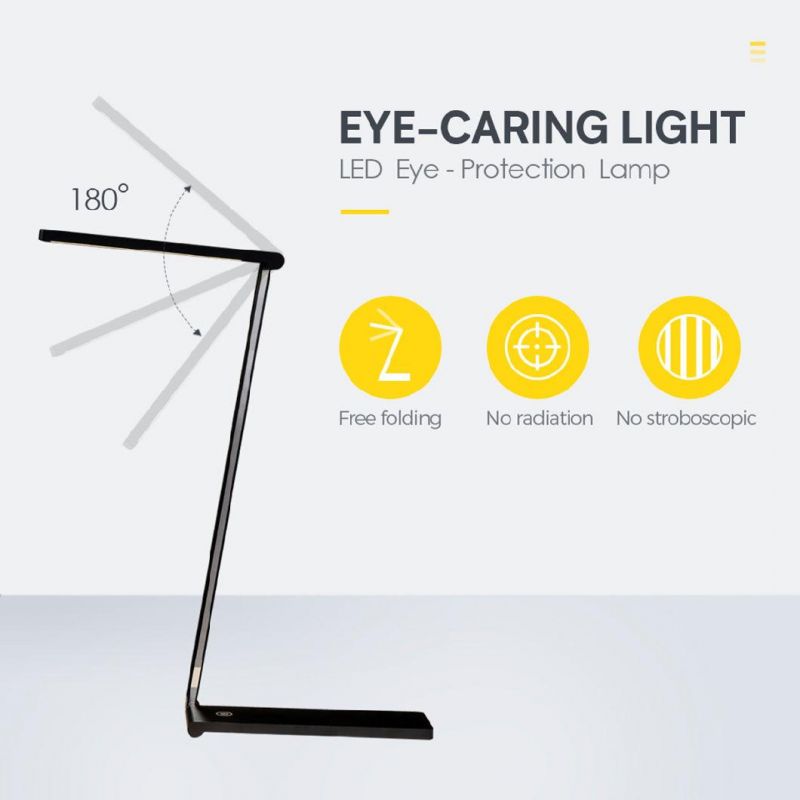

Partofthe rotaryguide


1 Hold the lamp base on the desktop.
2 Rotate the lamp arm to the angle you need. Rotation range: 0~180 degree.
3 Rotate the light source to the angle you need. Rotation range: 0~180 degree.


Precautions

Personal disassembly is not allowed.


Please keep it away from conditions of
dampness, high temperatures, and
exposure to direct sunlight
Pleasekeepthelampstandingontheflat
surface.


Using the adapter matched is priority.


Please don't use worn cable.


Do not touch electrical components
with wet hands.

Please keep all parts of the lamp dry.


When not in use, please unplug the
power line or thunderstorm weather,
so as to avoid damage to the product
Please use a soft dry cloth to clean
and do not use solvents or cleaning
solvents.

Please do not overload the circuit.
