• Model NO.：HRD1401 SMD,COB 24W
• Color Temperature：Ww,Nw,Cw
• Lamp Body Material：Aluminum Alloy
• Installation：Recessed
• Switch Type：With Remote Control
• Warranty：5 Years
• Application：Engineering, Home Furnishing, Project
• IP Rating：IP55
• Certification：CCC, CE, CQC, LVD, RoHS, SAA
• Reflector：Mirror, Matt Sliver, Whitem Mirror+DOT etc
• CIR：Ra>90
• Lumen：>85lm,W
• Cut-out：125mm
• Transport Package：Carton
• Specification：Φ 135*95mm
• Trademark：HOSD
• Origin：Zhongshan, China
• HS Code：9405409000
• Production Capacity：100000PCS,Mounth
• Package size per unit product：15.00cm * 15.00cm * 11.00cm
• Gross weight per unit product：1.500kg

Basic Info.

Model NO. HRD1401 SMD/COB 24W Color Temperature Ww/Nw/Cw Lamp Body Material Aluminum Alloy Installation Recessed Switch Type With Remote Control Warranty 5 Years Application Engineering, Home Furnishing, Project IP Rating IP55 Certification CCC, CE, CQC, LVD, RoHS, SAA Reflector Mirror, Matt Sliver, Whitem Mirror+DOT etc CIR Ra>90 Lumen >85lm/W Cut-out 125mm Transport Package Carton Specification Φ 135*95mm Trademark HOSD Origin Zhongshan, China HS Code 9405409000 Production Capacity 100000PCS/Mounth

Packaging & Delivery

Package size per unit product 15.00cm * 15.00cm * 11.00cm Gross weight per unit product 1.500kg

Product Description

IP55 COB SMD 60° Anti-Glare Dali 1-10V Dimmable ceiling recessed wallwasher LED Spotlight Down Light for Hall Lobby Reception Airport Exhibition Store Shop:

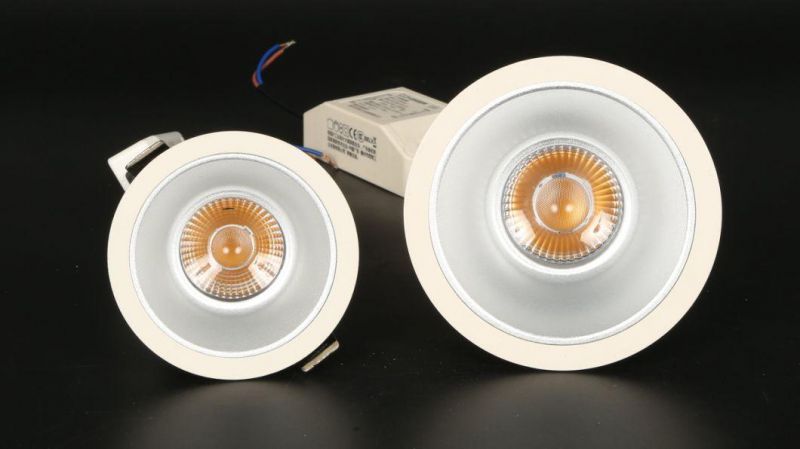

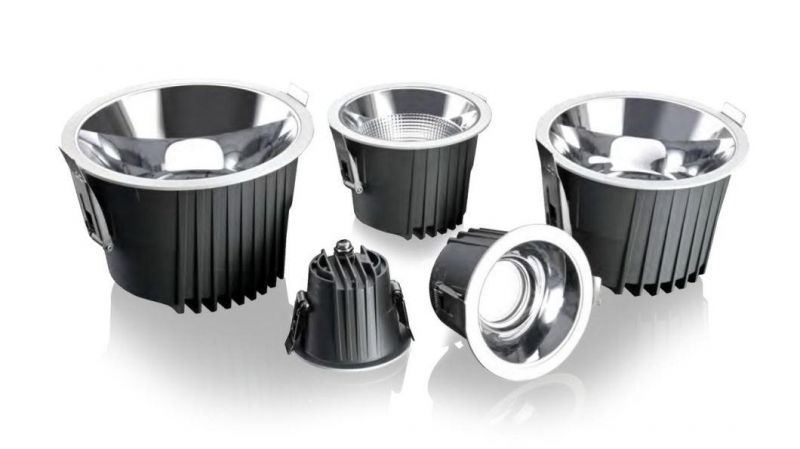

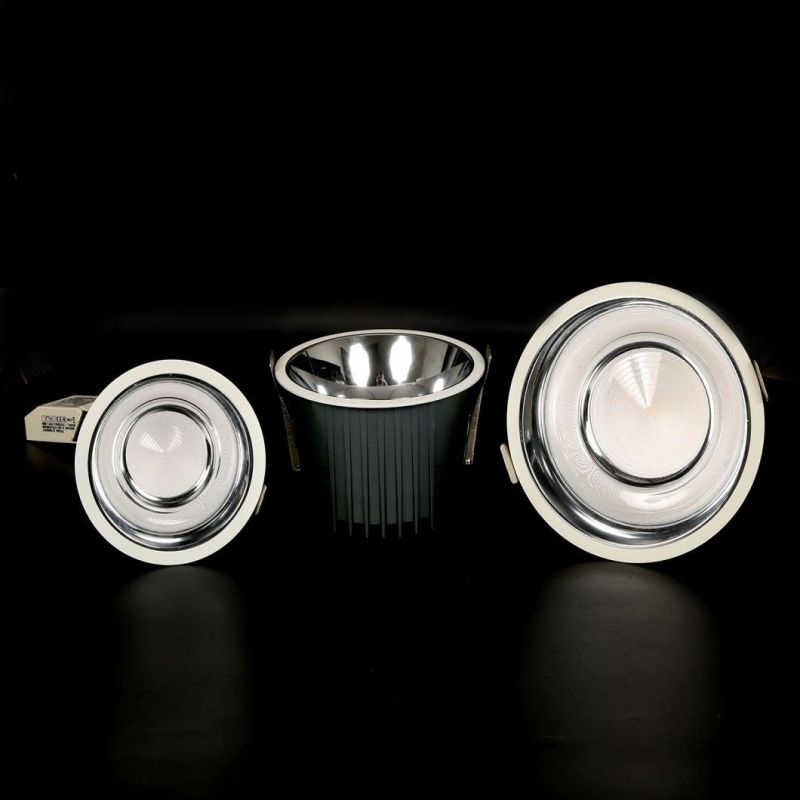

* Ceiling recessed led reflector spotlight for hall sites

* Bridgelux/Cree/Osram COB led chip, high CRI and brightness

* Constant current driver, Triac,0~10V or DALI dimmable option

* Instant start, no flickering, no humming, no electric wave

* Optics diffusor and lens no UV, deep-hidden anti-glare URG<16

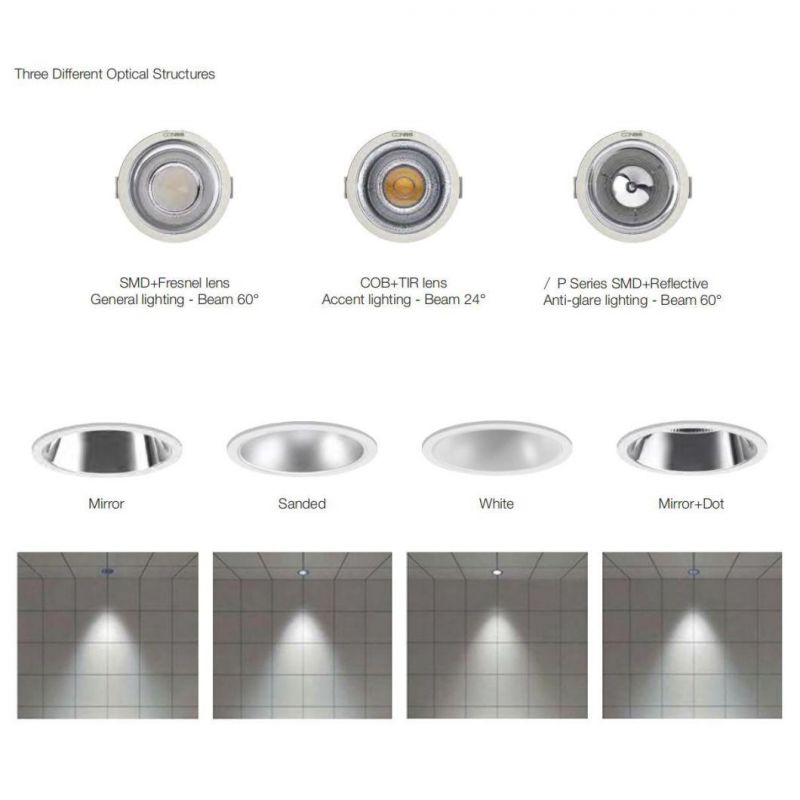

* Reflector color: black, white, silver, golden

* Reflector color: mirror, sand, white, mirror+dot Etc.

* Aluminum alloy housing, nice heat dissipation

* Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K

* Less than 3% light decay in 10000hrs testing, SDCM≤7

* Operating temperature: -25ºC~55ºC

* Energy saving up to 85% comparing to metal halid lamp

* Long Life span up to 50,000 hours

Item No.	Type of Chip	Watt	Q'ty of Chips	CCT	Beam Angle	Lumens	Ra	SDCM	Dia.*H mm	Cut-out mm
HRD12501S	SMD 2835	9W	16	3500K4000K5700K	60°	765	≥90	<7STEP	Φ87*65	Φ75
HRD13501S	SMD 2835	15W	24	3500K4000K5700K	60°	1275	≥90	<7STEP	Φ110*75	Φ95
HRD1401S	SMD 2835	24W	36	3500K4000K5700K	60°	2040	≥90	<7STEP	Φ135*95	Φ125
HRD1501S	SMD 2835	35W	60	3500K4000K5700K	60°	2975	≥90	<7STEP	Φ160*109	Φ150
HRD1701S	SMD 2835	45W	72	3500K4000K5700K	60°	3825	≥90	<7STEP	Φ186*121	Φ175
HRD12501C	COB	9W	1	3500K4000K5700K	24°	765	≥90	<7STEP	Φ87*65	Φ75
HRD13501C	COB	15W	1	3500K4000K5700K	24°	1275	≥90	<7STEP	Φ110*75	Φ95
HRD1401C	COB	24W	1	3500K4000K5700K	24°	2040	≥90	<7STEP	Φ135*95	Φ125
HRD1501C	COB	35W	1	3500K4000K5700K	24°	2975	≥90	<7STEP	Φ160*109	Φ150
HRD1701C	COB	45W	1	3500K4000K5700K	24°	3825	≥90	<7STEP	Φ186*121	Φ175










FAQ:

Q1: Are you a factory manufacturer?

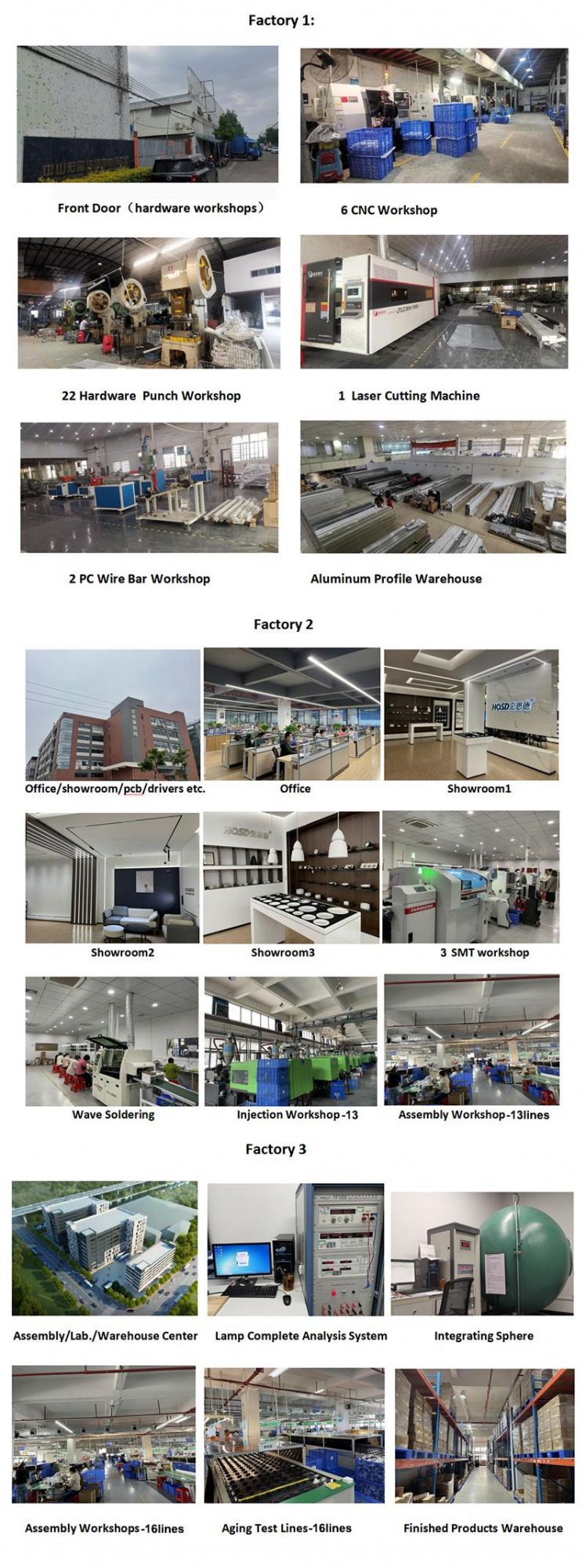

A1: Yes, we are. HOSD Lighting is a purely and professional original manufacturer, we have three own factories now.

Q2. Do you have the ability to develop OEM new products and how long to make mould samples?
A2: Yes, our structure engineers can make CAD and 3D drawing and development new products based on the requirements of client. we have mould workshops of punched, injection and die-casting products, mould samples are faster much.

Q3. Can I have a sample order for the item we insterest?
A3: Yes, we accept sample order to test and check quality. Mixed models are acceptable.
Q4. What's the lead time for sample and bulk order?
A4: 3-5 days for samples, 2-4 weeks for batch bulk order.

Q5. What is the quality process of lights and what is warranty time of products?
A5: Our factory passed GBT19001-2016 and ISO9001-2015, 100% finished products passed test aging before packing. we offer 2-5 years guarrantee to all our products.

Q6. How to deal with the products fail in period of guarantee?
A6. For parts fail in guarantee, we will send free replacements with new order for small quantity. For fail batch products, we will repair and resend them without our own shipping account or we negotiate the best solution together.

Q7. What type test report can you offer for your led indoor and outdoor light?
A7. We have own lab. and can offer IES report, Photometric report, LM80 reports Etc.
