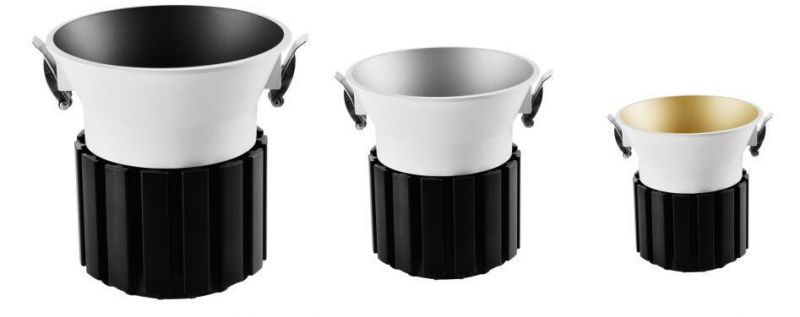

Narrow Trim Square Recessed Deep Recessed Anti Glare IP54 Downlight
Zhongshan Fansen Lighting CO., LTD.- Input Voltage:220V
- Power:8W,15W,24W
Base Info
- Model NO.:FS5210
- Color Temperature:Warm White
- Lamp Body Material:Aluminous
- Source Number:LED
- Installation:Recessed
- Switch Type:With Remote Control
- Warranty:3 Years
- IP Rating:IP54
- Certification:CCC, CE, EMC, LVD, RoHS, SAA, Bis
- PF:0.9
- Transport Package:K2a and a=a Carton

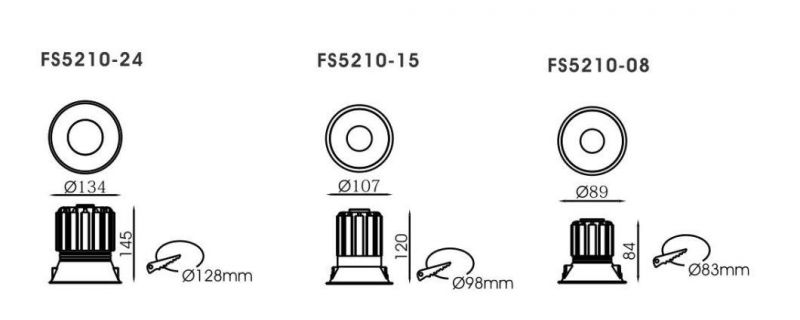

- Specification:Size: D107*H120mm Cut out: D98mm
- Trademark:FANSEN
- Origin:China
- HS Code:9405409000
- Package size per unit product:35.00cm * 45.00cm * 55.00cm
- Gross weight per unit product:10.000kg
Description
FS5210-24Material Die-Casted Aluminum Color White /Black / Grey/ Golden Size(mm) D89*H84 D107*H120 D134*H145 Cut out(mm) D83 D98 D128 PF >0.9 Beam Angle 20°/40°/60° 15°/24°/38° 16°/24°/38° Total Power 8W 15W 24W Rated Luminous Flux 640lm 1200lm 1920lm Colour Rendering Index(CRI) ≥80&90 LED Type COB Color Temperature 2700-6000K Input Voltage AC100~240V Chip CREE / Citizen / Luminus / Bridgelux Driver Lifud / Tridonic / Eaglerise Dimming Options Dimmable/Non-dimmable Circuit Protection Over-Current Protection, Short-Circuit Protection
Over-Voltage Protection Protection(IP) IP40 Working Temperature -30ºC-40ºC Certificate CCC,CE,SAA,CCC,RoHS,BIS Warranty 3~5 years Lifespan 30000~50000 Hours Delivery Time 30 Days Delivery Port Zhongshan,Shenzhen Port Payment terms Bank T/T 30% deposit,70% balance before dispatch goods Place of Origin Guangdong China (Mainland)

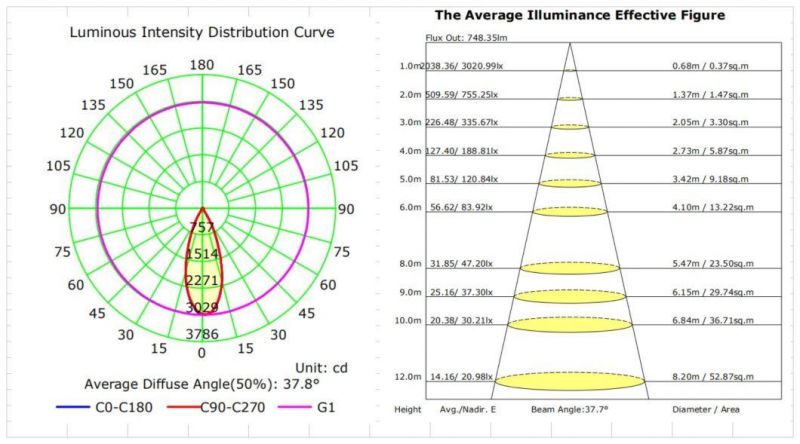

Photometric Results
Q1.Can I have a sample order for led light ?
A: Yes ,we weclome sample order to test and check quaily
Q2.Do you have any MOQ limit for led light light order ?
A:Low MOQ,1pc for sample checking is available .
Q3.How do you ship the goods ?
A: International Express delivery for samples,Sea &Air cargo transportation for bulk orders .
Q4.Is it ok to print my logo om led light product ?
A:yes it is
Q5.Do you offer guarantee for the products ?
A:yes ,we can offer 3-5years warranty to our products .
Q6:Delivery time ?
A:Bulk order :15working days after received deposit .
Q7:Are you a Manufacturer or Trade company ?
A:We are a professional manufacturer of led commercial light .
